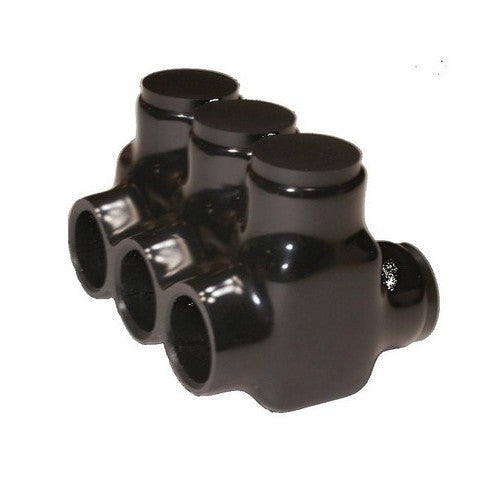

Morris Products 97613 Black Insulated Multi-Cable Connector - Dual Entry, 3 Ports, 4-14 Wire Range

Product Description

The Morris Products 97613 is a black insulated multi-cable connector. This connector features dual entry ports, allowing access from either side. It has three ports and a wire range from four to fourteen gauge. The connector is filled with an oxide inhibitor to prevent corrosion and is insulated with a high-dielectric rubber and vinyl coating. Constructed with 6061-T6 aluminum, it is rated for use with both copper and aluminum wires. It allows for easy re-entry for inspection and troubleshooting.

• Features dual entry ports for wire access from either side.
• Pre-filled with oxide inhibitor to prevent corrosion.
• Rated for 600 volts and temperatures from -49°F to 194°F.

Product Highlights

The connector is ideal for electrical applications requiring efficient wire connections and durability.

Product Information

Standard Information

• Brand: Morris Products
• MPN: 97613

Technical Specifications

• Connector Type: Power Plug
• Contact Material: Aluminum
• Insulation Material: Rubber, Vinyl
• Number of Ports: Three
• Wire Range: 4 - 14
• Voltage: 600 Volt
• Operating Temperature: -49°F to 194°F
• Material: 6061-T6 Aluminum CU9AL
• Listings: ANSI C119.4, UL 486B
