Morris Products 97555 Multi-cable Connector 5 Port 350-6 Awg

Product Description

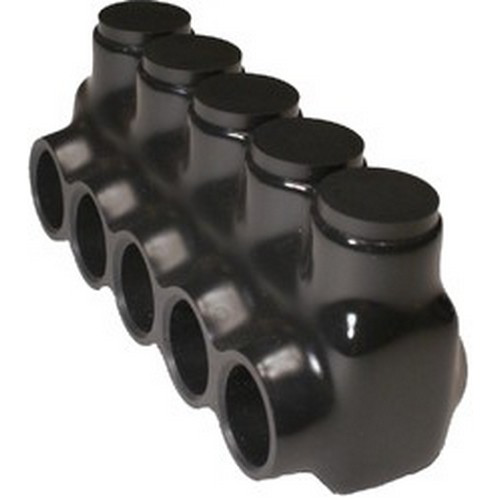

The MORRIS PRODUCTS 97555 is a black insulated multi-cable connector designed for electrical power distribution applications. It features a single side entry configuration with five ports, accommodating wire sizes from 350 to 6 AWG. This connector is used to splice and tap multiple conductors at a single junction point, eliminating the need for additional splice kits or terminal blocks. Electricians working on power distribution panels, service entrances, and branch circuit assemblies will find this connector practical for consolidating conductors in tight enclosures or junction boxes.

This connector is suited for residential and commercial electrical installations where multi-conductor splicing is required. The single side entry design simplifies routing cables into the connector body, which is useful in retrofit work or new construction where conduit runs converge at a single point. It is compatible with copper conductors ranging from 350 kcmil down to 6 AWG, covering a wide range of feeder and branch circuit conductor sizes typically encountered in service work.

Key Features

• Single side entry design simplifies conductor insertion and routing
• Five ports accommodate multiple conductors at one junction
• Accepts wire range from 350 to 6 AWG for versatile feeder and branch circuit applications
• Black insulated housing provides visual identification and basic insulation over the connection point
• Consolidates cable splicing and tapping into a single compact connector body

Compatibility

Designed as an OEM-style replacement and standard-use connector for multi-conductor splicing applications in residential and commercial electrical power distribution systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before inserting or removing conductors. Verify that all conductors are within the rated AWG range before terminating. Do not exceed the connector port count or force conductors outside the specified wire range into the ports.

Technical Specifications

• Number of Ports: 5
• Wire Range: 350 to 6 AWG
• Entry Type: Single Side Entry
• Housing Color: Black
• Insulation: Insulated

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 97555
