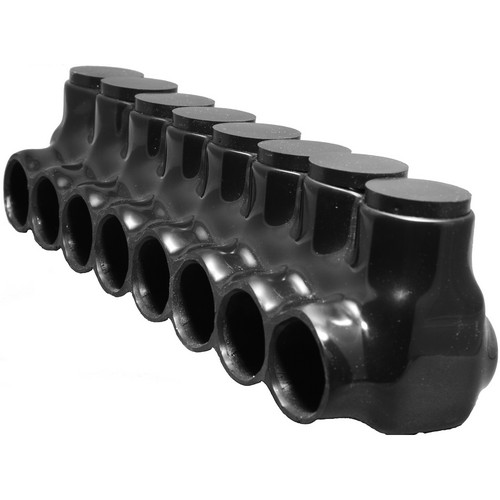

Morris Products 97548 Multi-cable Connector 8 Port 250-6 Awg

Product Description

The MORRIS PRODUCTS 97548 is a black insulated multi-cable connector designed for single-side entry cable splicing and tapping applications in electrical power distribution work. The connector accepts 8 ports with a conductor range of 250 to 6 AWG, making it suitable for connecting multiple conductors of varying sizes within a single insulated body. Licensed electricians and electrical contractors use this connector to consolidate splice points, reduce junction box clutter, and maintain insulation continuity across multi-conductor runs. The black insulated housing provides visual identification and protects the connection from incidental contact.

This connector is used in commercial and residential electrical installations where multiple cables must be joined or tapped at a single point. Its single-side entry design keeps all conductors entering from one direction, simplifying termination in tight spaces such as panelboards, junction boxes, and power distribution assemblies. The 8-port capacity allows a single connector to handle several branch conductors simultaneously, reducing the need for multiple smaller splicing devices on the same run.

Key Features

• 8 ports accommodate multiple conductors in a single insulated body
• Conductor range of 250 to 6 AWG supports a wide mix of wire sizes
• Single-side entry design simplifies termination in confined enclosures
• Black insulated housing provides contact protection and circuit identification
• Suitable for cable splicing and tapping applications in power distribution work

Compatibility

Designed as an OEM-style replacement and direct alternative to NSI IPL2508 insulated multi-cable connectors for single-entry splicing and tapping applications accepting 250 to 6 AWG conductors.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before terminating any conductors. Verify that all conductor sizes fall within the 250 to 6 AWG range before insertion. Do not exceed the rated port count or attempt to insert conductors from the non-entry side of the connector body.

Technical Specifications

• Number of Ports: 8
• Conductor Range: 250 to 6 AWG
• Entry Type: Single-side entry
• Housing Color: Black
• Insulation: Insulated

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 97548
