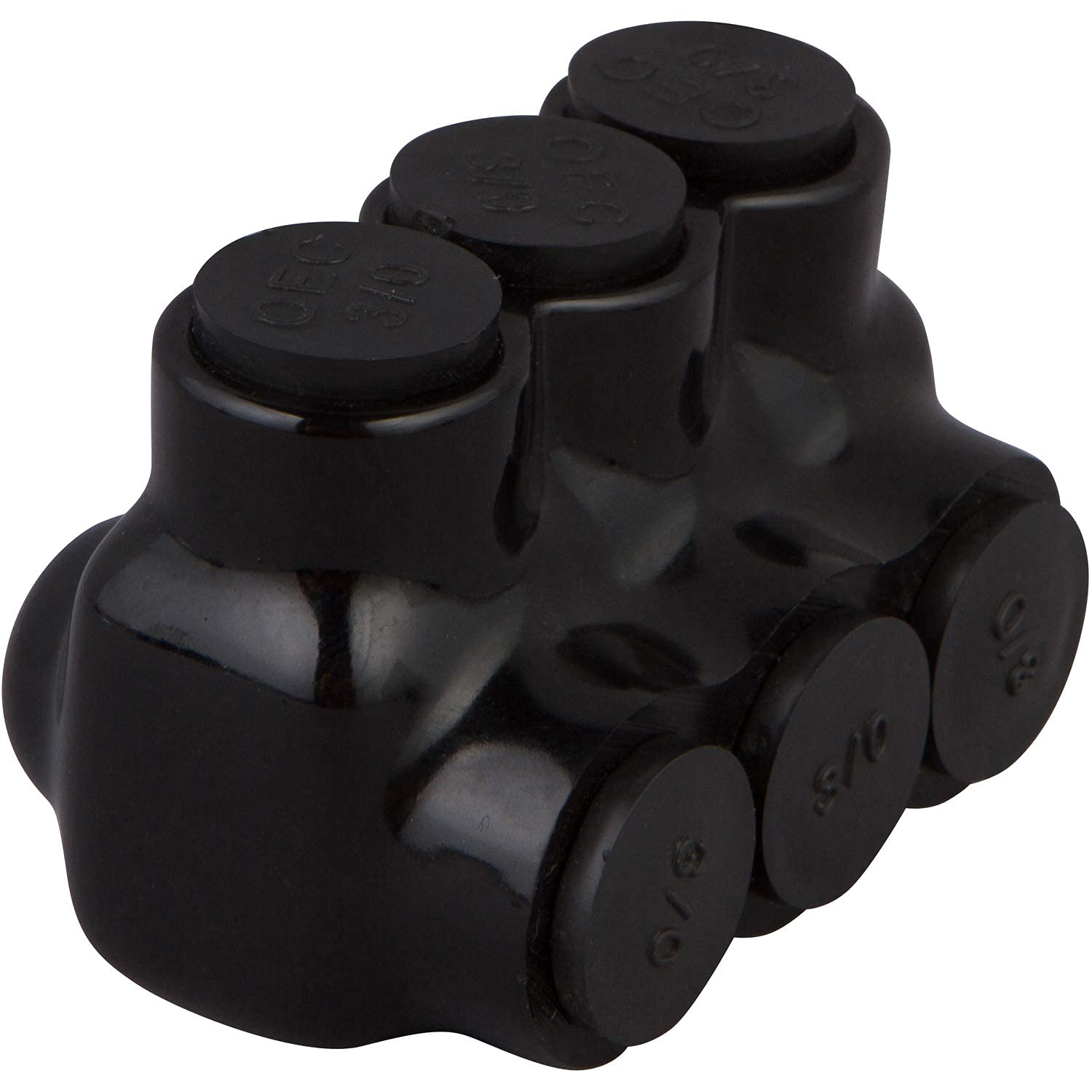

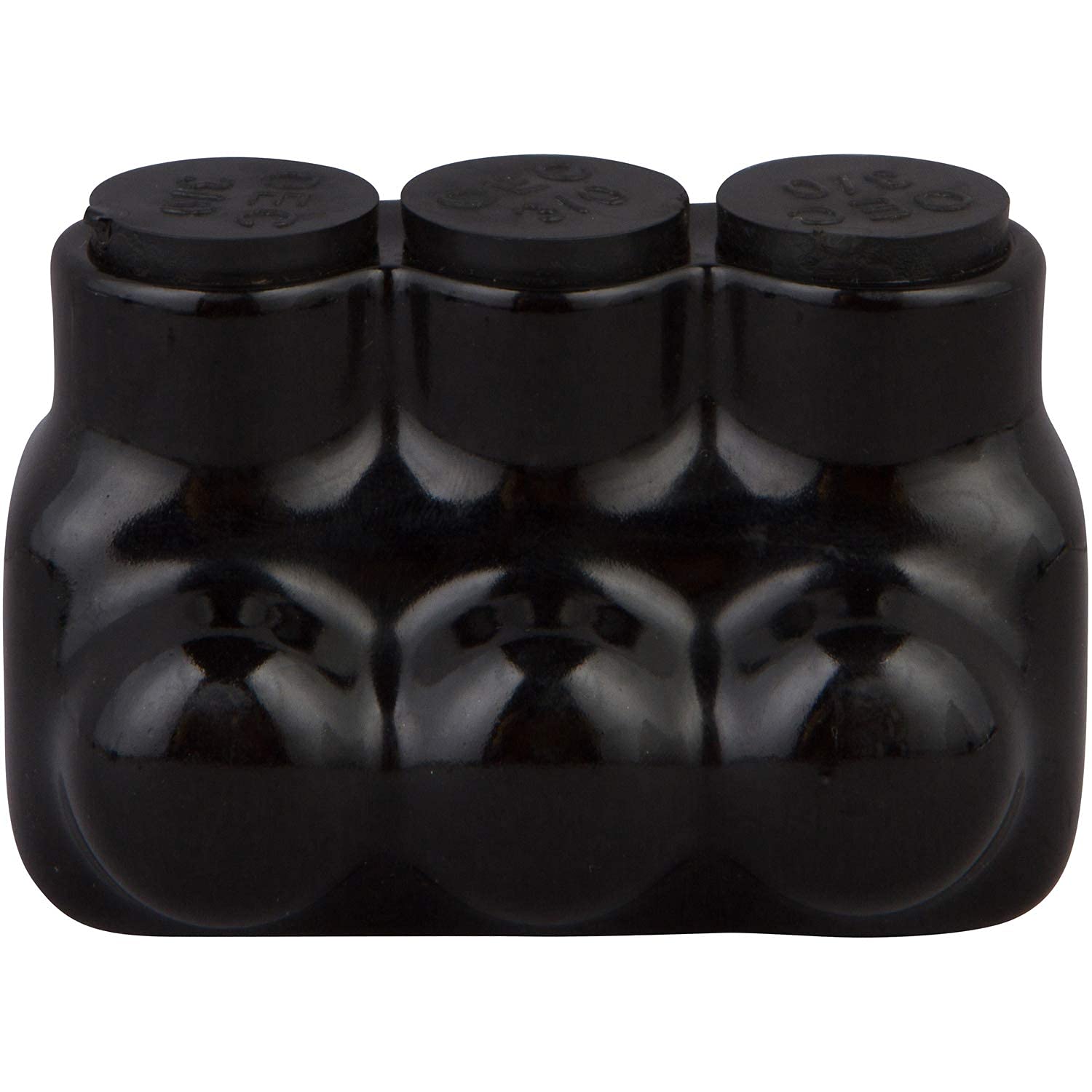

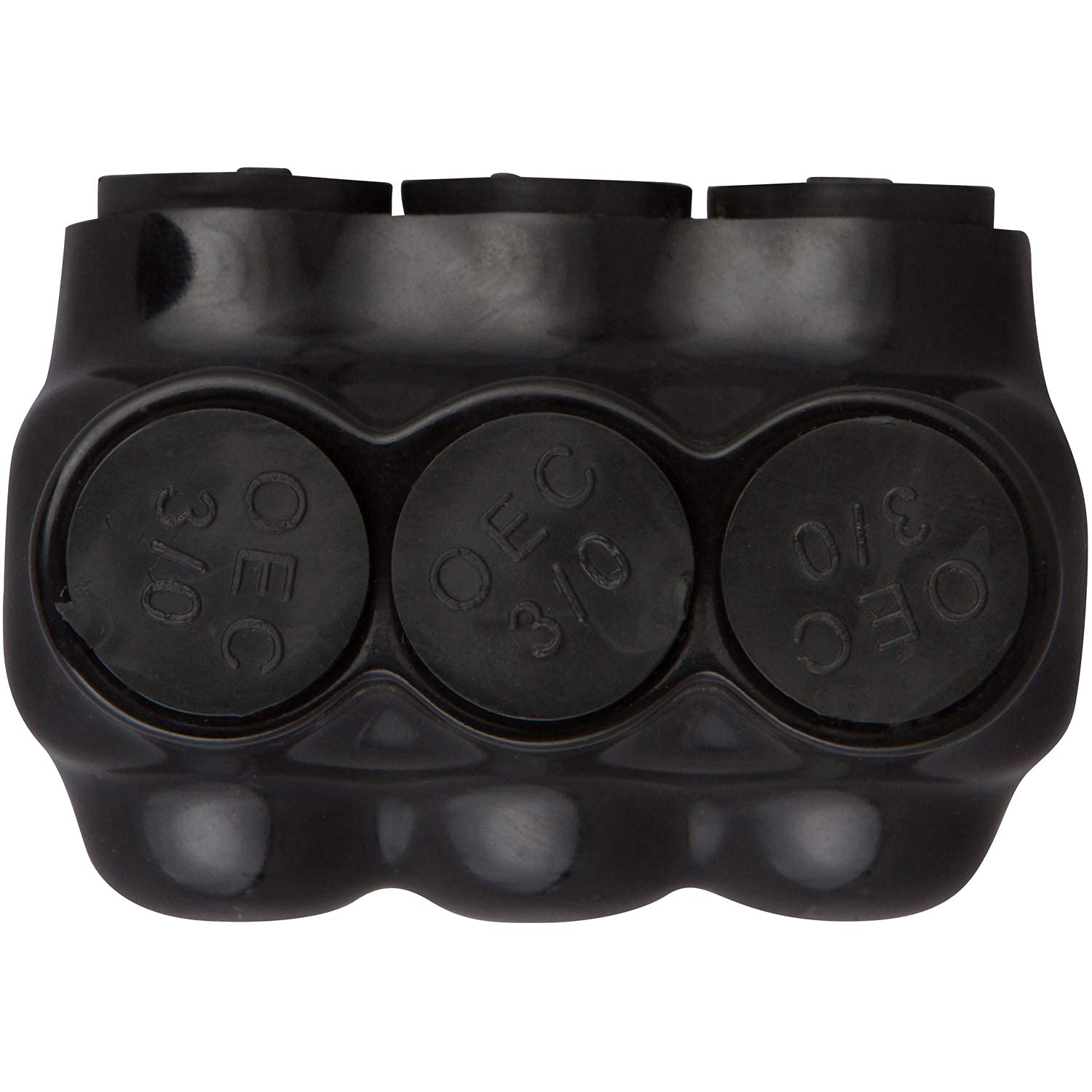

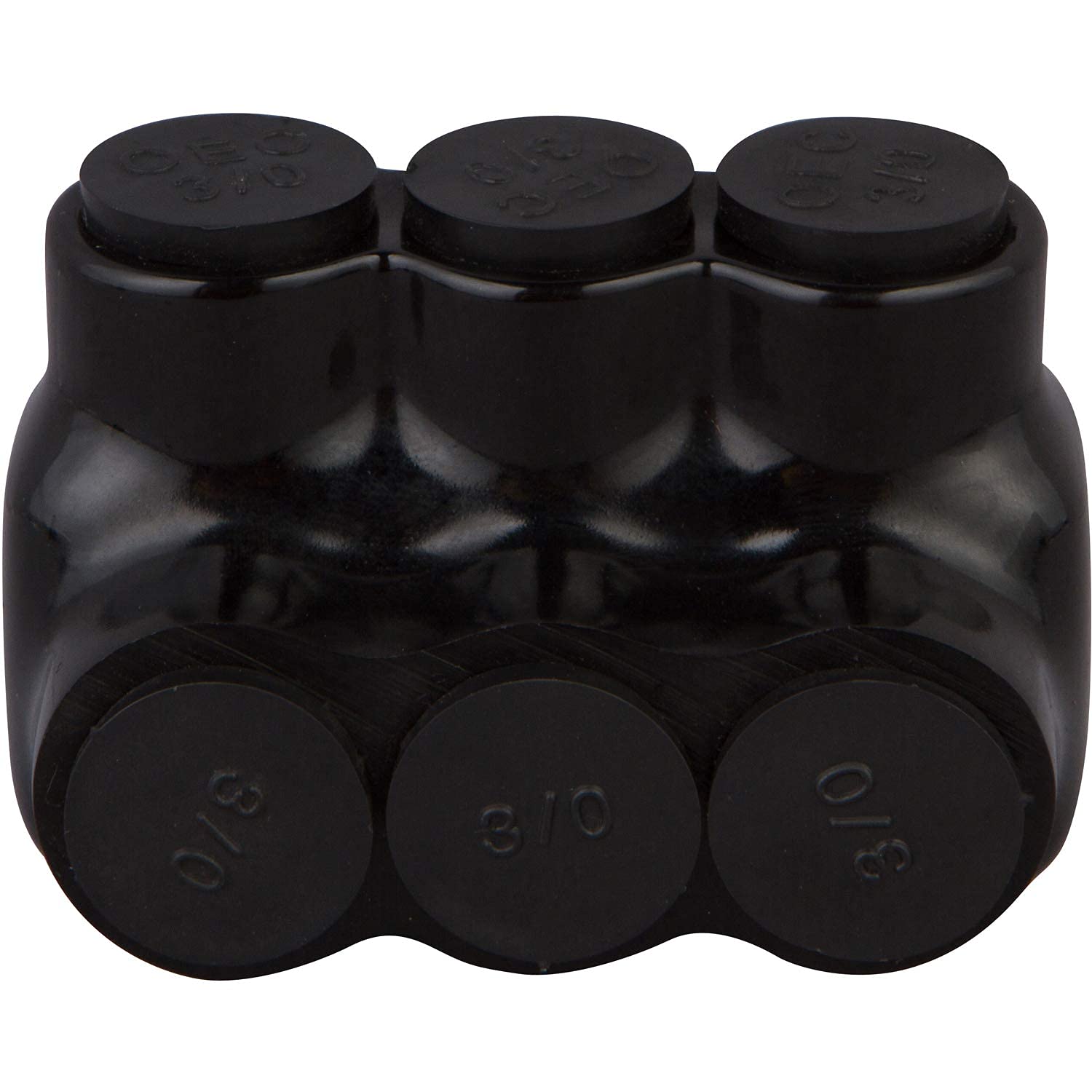

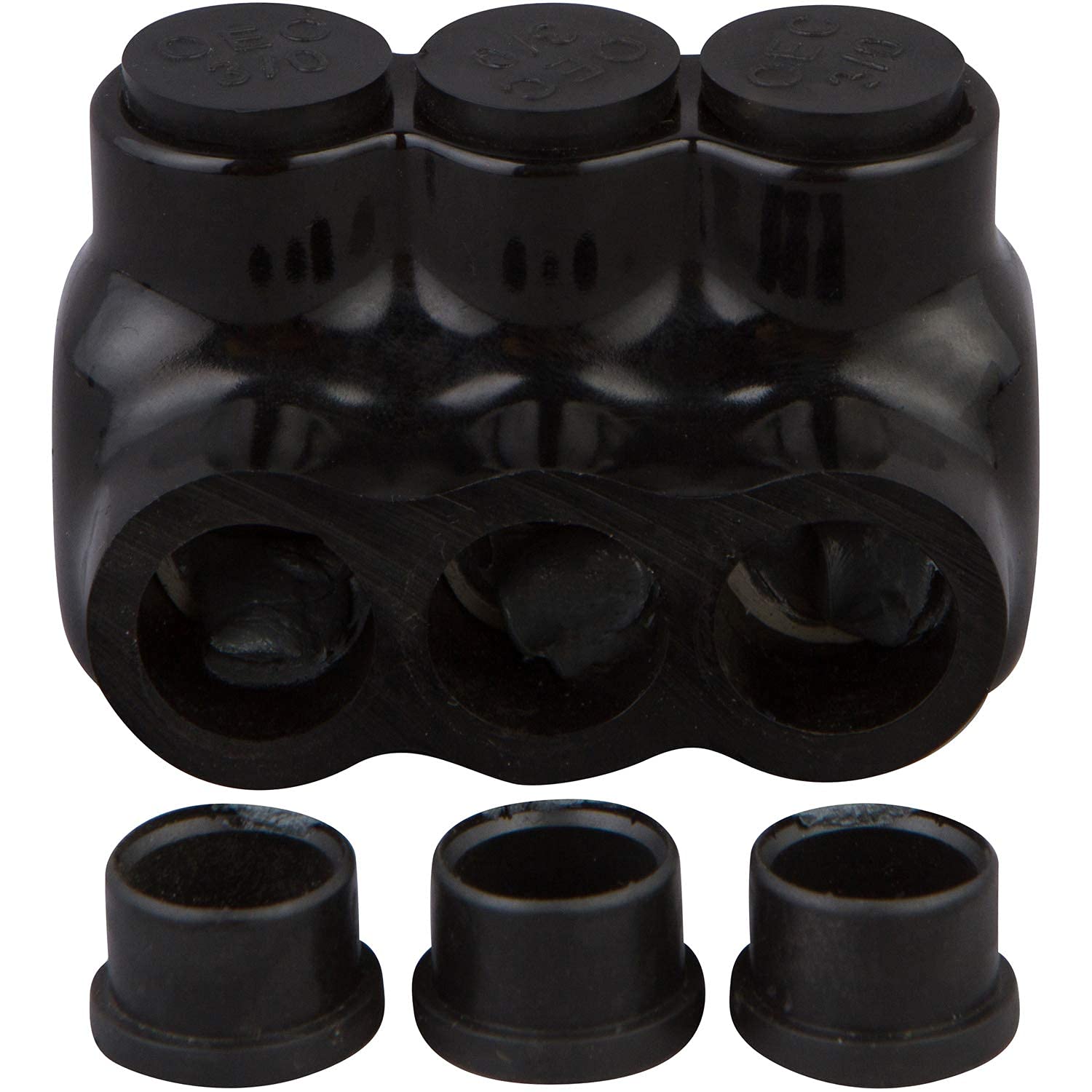

Morris Products 97525 insulated multi-cable connector 600 volt 3 wire ports 1/0-14 wire range 3/16 allen hex 1-pack

Product Description

The Morris Products 97525 is an insulated multi-cable connector designed for cable splicing and tapping applications. This single-side entry connector features rugged high-dielectric rubber and vinyl coating for insulation. It is pre-filled with oxide inhibitor and rated for 600 volts. Constructed from 6061-T6 Aluminum CU9AL, it is dual-rated for use with both aluminum and copper wires, offering a temperature range of -49 to 194 degrees Fahrenheit.

• Insulated with rugged, high-dielectric rubber and vinyl coating for long-term use.
• Offers easy re-entry for inspection, troubleshooting, and changes.
• Pre-filled with oxide inhibitor and rated for 600 volts.

Product Highlights

Single-side entry connector with 3 wire ports, 1/0-14 wire range, and 3/16 Allen Hex.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 97525
• Country of Origin: USA

Technical Specifications

• Manufacturer: Morris Products
• Product Type: Electronic Component Terminal
• MPN: 97525
• Pack Quantity: 1
• Wire Ports: 3
• Wire Range: 1/0-14 AWG
• Allen Hex Size: 3/16 inch
• Entry Type: Single
• Voltage Rating: 600 Volt
• Material: 6061-T6 Aluminum CU9AL Dual Rated
• Operating Temperature: -49 to 194 Degrees F
• Certifications: ANSI C119.4, cULus Listed Through 750MCM
• Wire Compatibility: Aluminum and Copper Wires
• Insulation Material: Rugged High-Dielectric Rubber/Vinyl Coating
• Pre-filled: Oxide Inhibitor
• UPC: 601986975254
• SKU: Morris-97525
