Morris Products 97514 insulated multi-cable connector 600 volt single entry 4 ports 4 - 14

Product Description

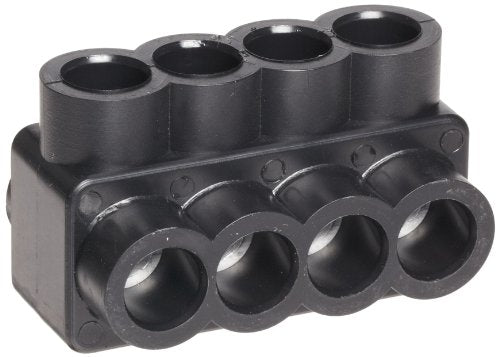

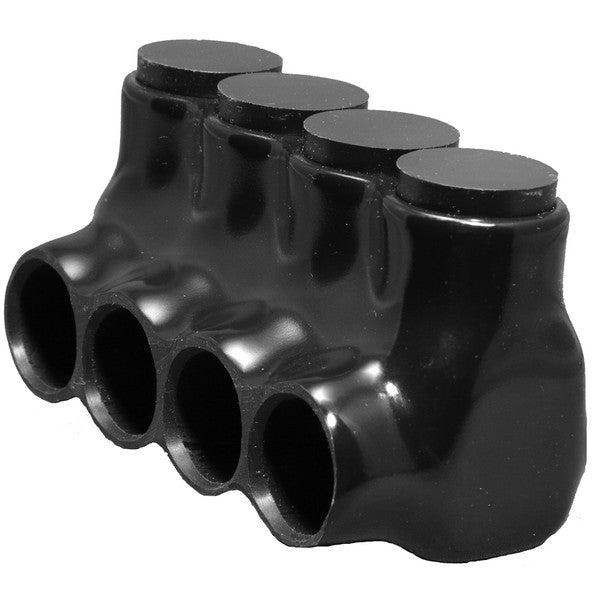

The MORRIS PRODUCTS 97514 insulated multi-cable connector is designed for electrical power applications, simplifying cable splicing and tapping. This single side entry connector features 4 ports and accommodates wire sizes from #4 to #14. Constructed from 6061-T6 aluminum CU9AL, it is dual-rated for copper and aluminum wires. The connector is insulated with a rugged high-dielectric rubber/vinyl coating and pre-filled with an oxide inhibitor. It operates at 600 volts within a temperature range of –49°F to 194°F (–45° to 90°C).

• Wires enter the same side of the connector
• Pre-filled with oxide inhibitor
• Dual rated for use with copper and/or aluminum wires

Product Highlights

Simplifies cable splicing and tapping applications with single side entry design.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 97514

Technical Specifications

• SKU: 97514
• Material: 6061-T6 Aluminum CU9AL
• Insulation: Rugged high-dielectric Rubber/Vinyl Coating
• Voltage Rating: 600 Volt
• Temperature Range: –49°F to 194°F (–45° to 90°C)
• Certifications: ANSI C119.4 & cULus 486b Listed thru 750MCM
• Cable Rating: Rated for use with 194°F(90°C Cables)
• Number of Ports: 4
• Wire Range: #4 - #14
• Allen Hex: 1/8 in.
• Connector Type: Single Entry
• UPC: 601986975148
