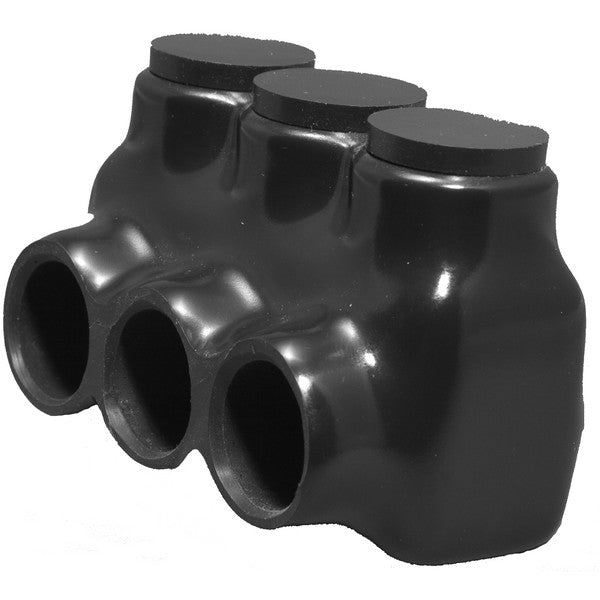

Morris Products 97513 insulated multi-cable connector 600V 3 ports 4-14 wire range 1-pack

Product Description

The Morris Products 97513 is an insulated multi-cable connector designed for electrical splicing and tapping applications. This 600-volt connector features a single side entry with 3 ports, accommodating wire ranges from 4-14 AWG. It is constructed from 6061-T6 Aluminum CU9AL, dual-rated for copper and aluminum wires, and insulated with a rugged high-dielectric rubber and vinyl coating. Pre-filled with oxide inhibitor, it operates within a temperature range of -49 to 194 degrees F. It is ANSI C119.4 and cULus 486b listed.

• Insulated with rugged, high-dielectric rubber and vinyl coating for durability.
• Features single side entry for easy re-entry, inspection, and troubleshooting.
• Constructed from 6061-T6 Aluminum CU9AL, dual-rated for copper and aluminum wires.

Product Highlights

This Morris Products 97513 multi-cable connector offers secure 600V connections for 4-14 AWG wires, featuring durable insulation, oxide inhibitor, and easy re-entry for maintenance.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 97513

Technical Specifications

• Brand: Morris Products
• MPN: 97513
• Quantity: 1
• GTIN: 00601986975131
• Manufacturer: Morris Products
• Connector Type: Multi-Cable Connector
• Entry Type: Single Side Entry
• Operating Temperature Range: -49°F to 194°F (-45°C to 90°C)
• Voltage Rating: 600V
• Insulation Material: Rubber/Vinyl
• Oxide Inhibitor: Pre-Filled
• Material: 6061-T6 Aluminum CU9AL
• Wire Compatibility: Copper and/or Aluminum
• Number of Ports: 3
• Wire Size Range: 4-14 AWG
• Certifications: ANSI C119.4, cULus 486b Listed thru 750MCM
• Cable Temperature Rating: 194°F (90°C)
• Allen Hex Size: 1/8 inch
• SKU: MSPR116
• Color: Black
