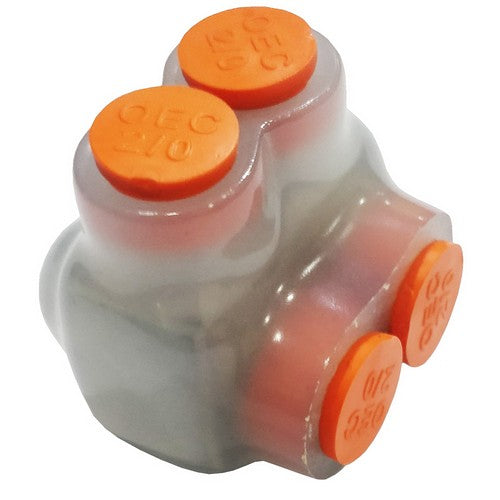

Morris Products 97328 Clear Insulated Multi-Cable Connector 600 Volt Single Entry 2 Port 1/0-2

Product Description

The Morris Products 97328 Clear Insulated Multi-Cable Connector is designed for reliable electrical terminations. This single-entry, 2-port connector accommodates wire ranges from 1/0 to 2, supporting both copper and aluminum wires. Rated for 600 volts, its clear insulation allows for visual confirmation of proper conductor insertion, enhancing safety and installation accuracy. It features a rugged, high-dielectric plastisol coating, making it chemical and abrasion resistant for various indoor applications.

• Clear insulation allows visual confirmation of proper conductor insertion.
• Dual-rated 6061-T6 aluminum connector for use with copper and/or aluminum wire.
• Single-piece clear molded insulation with rugged high-dielectric plastisol coating is chemical and abrasion resistant.

Product Highlights

This connector ensures secure, visually verifiable electrical connections with its durable, insulated design, suitable for diverse wire types.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 97328

Technical Specifications

• Material: 6061-T6 Aluminum, CU9AL, Plastisol, PVC, Rubber
• Entry Type: Single
• Insulation Type: Rubber
• Voltage Rating: 600 Volt
• Temperature Range: –49°F to 194°F (–45° to 90°C)
• Wire Range: 1/0-2
• Number of Ports: 2
• Certifications: ANSI C119.4 & cULus 486b Listed
• Cable Temperature Rating: 194°F (90°C)
• Wire Per Terminal: One
