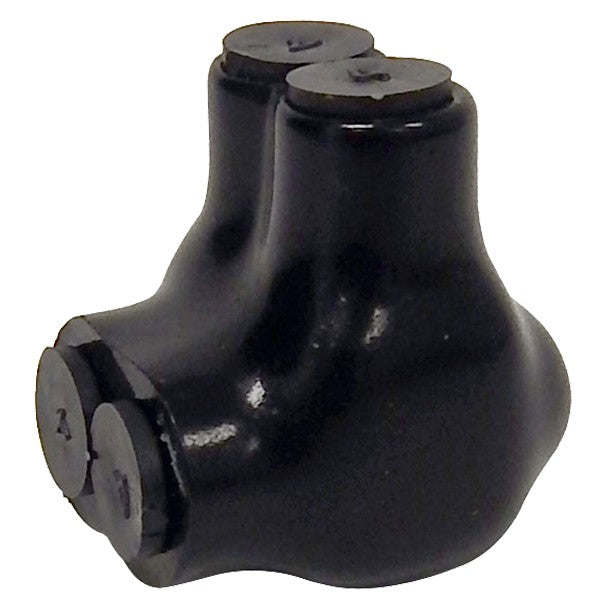

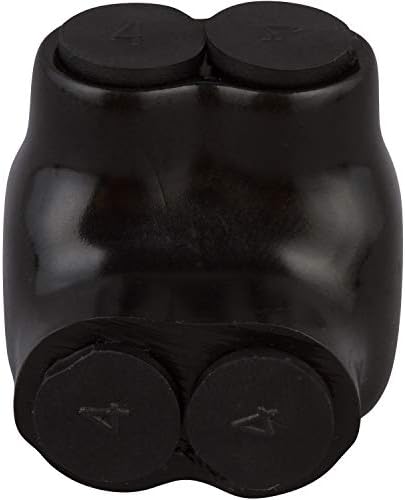

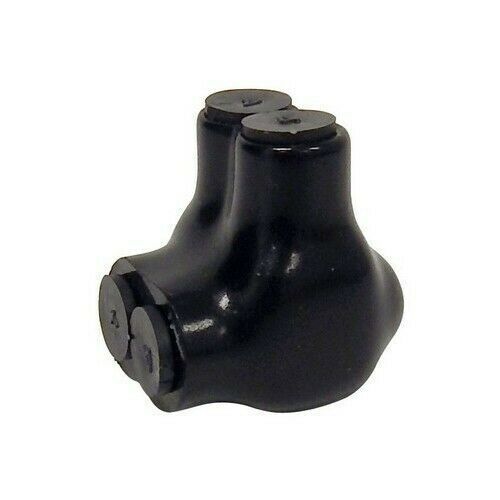

Morris Products 97105 insulated 2 conductor connector 600 volt pack of 2 1/0-14 wire range 3/16 allen hex single side entry

Product Description

The Morris Products 97105 is an insulated 2 conductor connector designed for cable splicing. It features a single side entry for wires and is rated for 600 Volt applications. This connector accommodates a wire range of 1/0-14 and uses a 3/16 Allen Hex for secure connections. It is pre-filled with oxide inhibitor and insulated with a rugged rubber vinyl coating, ensuring durability and reliable electrical connections. The connector is dual-rated for aluminum and copper wires.

• Insulated 2 conductor connector with single side entry for efficient cable splicing.
• Pre-filled with oxide inhibitor and features a durable rubber vinyl coating.
• Rated for 600 Volt applications, accommodating 1/0-14 wire range with 3/16 Allen Hex.

Product Highlights

Durable, insulated connector for secure 600V cable splicing with 1/0-14 wire range.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 97105
• Country of Origin: China

Technical Specifications

• Wire Range: 1/0-14
• Allen Hex Size: 3/16
• Entry Type: Single Side Entry
• Insulation Material: Rugged High-Dielectric Rubber and Vinyl Coating
• Voltage: 600 Volt
• Conductors: 2 Conductor
• Temperature Range: -49 to 194 Degrees F (-45 to 90 Degrees C)
• Material: 6061-T6 Aluminum CU9AL
• Certification: ANSI C119.4 and cULus 486b listed
• Oxide Inhibitor: Pre-filled
• Wire per Terminal: One
