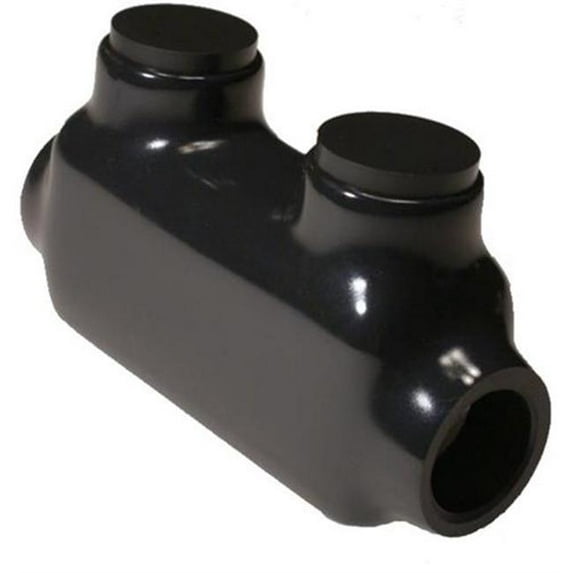

Morris Products 97022 In-Line Mechanical Insulated Connector 6 AWG to 350 kcmil

Product Description

The MORRIS PRODUCTS 97022 is an in-line mechanical insulated connector designed for aluminum or copper conductors. Constructed from 6061-T6 aluminum, this connector accommodates conductor sizes ranging from 6 AWG to 350 kcmil. It features a clear PVC insulation and is pre-filled with an oxide inhibitor for enhanced conductivity and corrosion resistance.

• Suitable for use with Aluminum/Copper conductors
• Constructed from durable 6061-T6 aluminum
• Rated for 600V AC voltage

Product Highlights

This insulated electrical power connector provides a reliable in-line splice, suitable for a range of electrical applications. Its rugged, high-dielectric rubber/vinyl coating ensures durability and safety.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 97022

Technical Specifications

• Conductor Type: Aluminum/Copper
• Material: 6061-T6 Aluminum
• Temperature Rating: -49 to 194 deg F
• Type: In-Line
• Conductor Size: 6 AWG to 350 kcmil
• Voltage Rating: 600 V AC
• Wire connector type: In-Line Splice
• Features: Insulated
• Wire Range: 350 - 6
• Allen Hex: 5/16 in.
• Cable Rating: Rated for Use with 194°F(90°C) Cables
• Use: Indoor Use Only
• Standards: ANSI C119.4 & cULus 486b Listed
