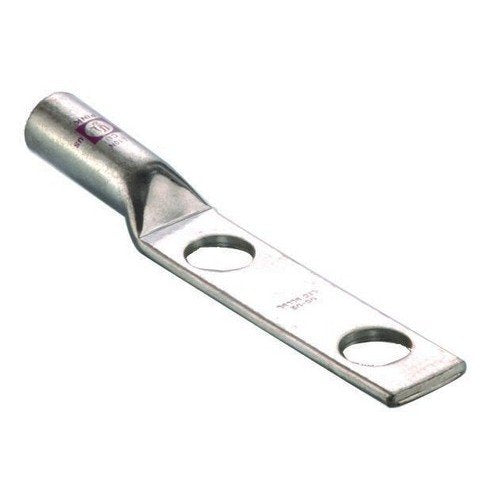

Morris Products 94325 2mllc4-5/16 copper compression lug long barrel 2 hole #4 awg 5/16 inch stud 1 inch spacing

Product Description

The Morris Products 94325 is a copper long barrel 2-hole compression lug designed for reliable electrical cable terminations. Constructed from high-conductivity seamless electrolytic copper with uniform bright electro-tin plating, it resists corrosion and maximizes conductivity. This lug accommodates multiple crimps with marked locations, ensuring proper installation for #4 AWG wires and 5/16 inch studs with 1 inch spacing. It is UL 486A and cULus Listed, rated for 35KV when properly installed.

• Long Barrel design accommodates multiple crimps
• Two-hole configuration for secure mounting
• Copper compression for reliable electrical cable terminations

Product Highlights

High-conductivity seamless electrolytic copper with electro-tin plating ensures corrosion resistance and maximum conductivity for secure electrical connections.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 94325

Technical Specifications

• Brand: Morris Products
• Model: 94325
• Color: Gray
• Certifications: UL 486A, cULus Listed
• Connector Type: Through Hole
• Maximum Voltage: 35KV
• Contact Material: Copper
• Material: High-Conductivity Seamless Electrolytic Copper
• Wire Gauge: #4 AWG
• Stud Size: 5/16 inch
• Hole Spacing: 1 inch
• Mounting Holes: Dual
• Plating: Uniform Bright Electro-Tin
• Barrel Type: Long
