Morris Products 94238 copper long barrel 1 hole compression lugs mllc2 2/0 awg 3/8 stud

Product Description

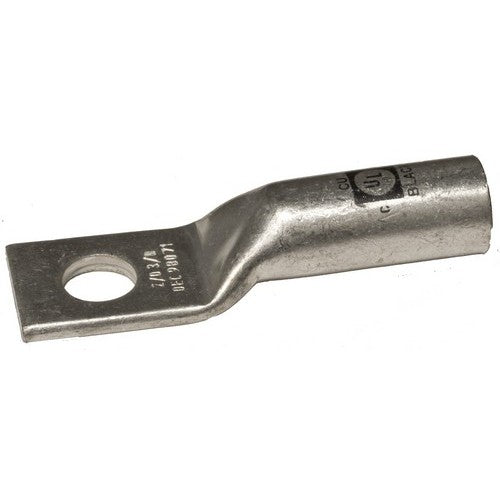

The Morris Products 94238 is a copper long barrel, one-hole compression lug designed for fast and reliable electrical cable terminations. Constructed from high-conductivity seamless electrolytic copper, it features a uniform bright electro-tin plating to resist corrosion and maximize conductivity. This lug accommodates 2/0 AWG wire with a 3/8 inch stud, ensuring secure connections. Crimp marks and color codes facilitate proper installation, and its long barrel design allows for multiple crimps. It is UL 486A and cULus Listed, rated for 35KV when correctly installed.

• Designed for fast, reliable electrical cable terminations.
• Made of high-conductivity seamless electrolytic copper with electro-tin plating.
• Features a long barrel, single mounting hole, and is UL 486A and cULus Listed.

Product Highlights

High-conductivity copper lug with electro-tin plating for secure 2/0 AWG cable terminations, UL/cULus listed for 35KV.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 94238

Technical Specifications

• Brand: Morris Products
• MPN: 94238
• Wire Range: 2/0 Stranded
• Stud Size: 3/8 inch
• Color Code: Black
• Inside Diameter: 0.441 inch (11.2 mm)
• Outside Diameter: 0.563 inch (14.3 mm)
• Barrel Length: 1.50 inch (38.1 mm)
• Material: High-conductivity Seamless Electrolytic Copper
• Plating: Uniform Bright Electro-Tin
• Certifications: UL 486A Listed, cULus Listed
• Voltage Rating: 35KV
• Quantity Per Pack: 1 Piece
• SKU: MSPR439
• UPC: 601986942386
• Overall Length: 2.68 inch
