Morris Products 94062 MLC2/0-3/8 Copper 1-Hole Lug 2-Pack

Product Description

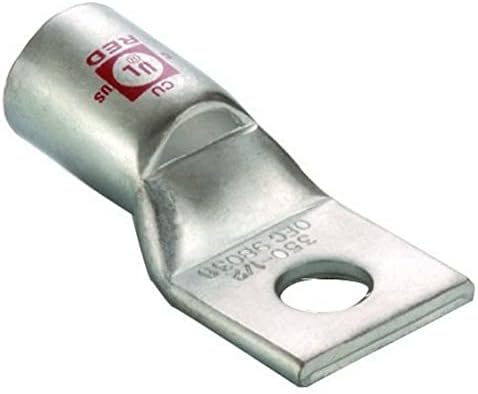

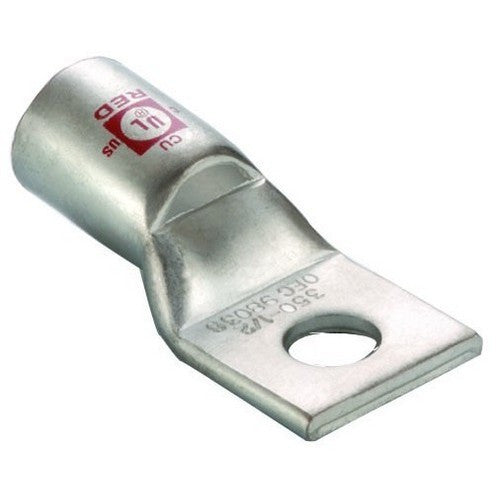

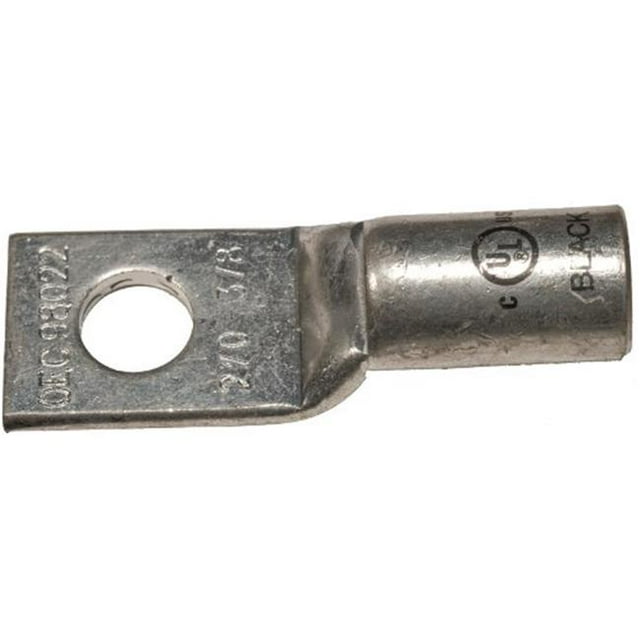

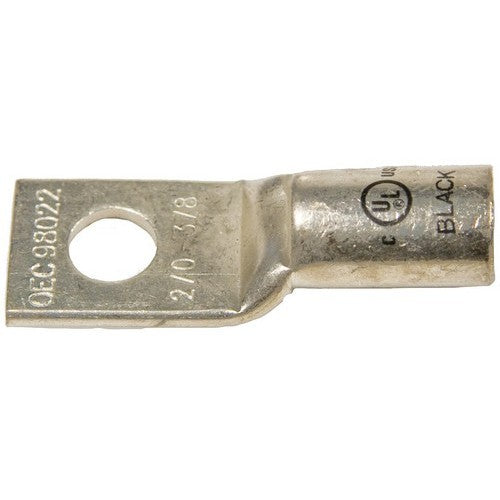

The Morris Products 94062 Copper Short Barrel 1 Hole Compression Lug is designed for fast and reliable electrical cable terminations. Made from high-conductivity seamless electrolytic copper, this lug features a single mounting hole and uniform bright electro-tin plating. This plating resists corrosion, reduces contact resistance, and maximizes conductivity. It includes crimp marks for proper crimp locations and a peephole for verifying strand insertion. UL 486A Listed and cULus Listed, it is rated for 35KV when properly installed.

• High-conductivity seamless electrolytic copper construction.
• Uniform bright electro-tin plating for corrosion resistance and maximum conductivity.
• Features crimp marks, die index, color codes, and a peephole for installation verification.

Product Highlights

Durable copper lug with tin plating ensures reliable, corrosion-resistant electrical connections for 35KV applications.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 94062

Technical Specifications

• Manufacturer Part Number: 94062
• Model Number: 94062
• Brand: Morris Products
• Wire Gauge: 2/0 AWG
• Stud Size: 3/8
• Mounting Hole: Single
• Material: High-conductivity Seamless Electrolytic Copper
• Plating: Uniform Bright Electro-Tin
• Voltage Rating: 35KV
• Certifications: UL 486A Listed, cULus Listed
• Inside Diameter: 0.44 inch
• Outside Diameter: 0.56 inch
• Color: Black
• Barrel Length: 0.94 inch
• Connector Type: Crimp
• Pack Quantity: 2
• Overall Length: 2.24 inch
