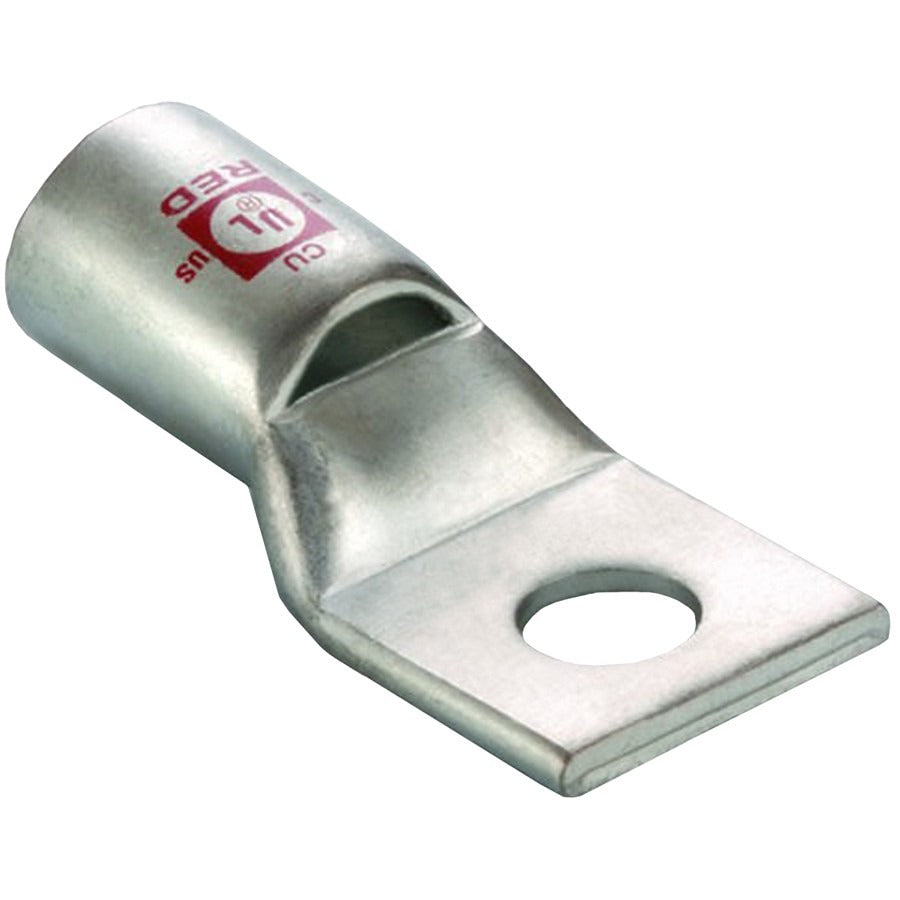

Morris Products 94060 Copper Short Barrel 1-Hole Compression Lug 2/0 AWG 5/16 Stud

Product Description

Morris Products 94060 is a copper short-barrel, one-hole compression lug designed for 2/0 AWG conductors and a 5/16 inch stud. It is made from seamless electrolytic copper with bright electro-tin plating to reduce contact resistance and resist corrosion. The lug includes crimp marks, die index and color coding, and a peephole for strand verification, and is UL 486A and cULus listed and listed for 35 kV when properly installed.

• Seamless electrolytic copper construction with bright electro-tin plating to improve conductivity and corrosion resistance
• Fits 2/0 AWG conductors and 5/16 inch stud; short barrel design for compact compression terminations
• Includes crimp marks, die index and color coding, and peephole for verification; UL 486A and cULus listed (listed for 35 kV when properly installed)

Product Highlights

Short-barrel copper compression lug for 2/0 AWG with 5/16 inch stud; crimp marks and peephole for installation verification; UL 486A and cULus listed.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 94060
