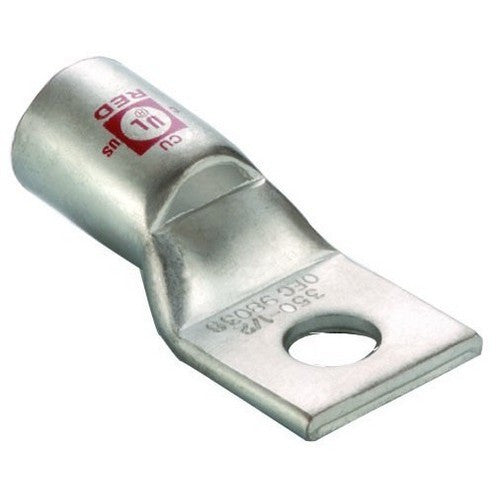

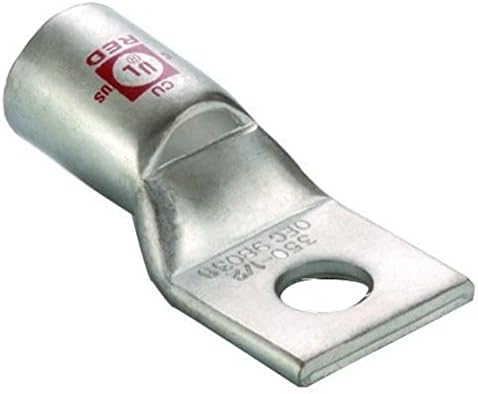

Morris Products 94054 copper short barrel 1 hole compression lugs 1/0 awg 3/8 stud

Product Description

The Morris Products 94054 is a copper short barrel 1 hole compression lug designed for fast, reliable electrical cable terminations. Made from high-conductivity seamless electrolytic copper with uniform bright electro-tin plating, it resists corrosion and maximizes conductivity. This lug features a single mounting hole, crimp marks for proper crimp locations, and a peephole for verifying strand insertion. It is UL 486A and cULus Listed, rated for 35KV when properly installed.

• Single mounting hole and high-conductivity seamless electrolytic copper construction.
• Uniform bright electro-tin plating resists corrosion and maximizes conductivity.
• Features crimp marks, die index and color codes for identification, and a peephole for strand insertion verification.

Product Highlights

High-conductivity copper lug with electro-tin plating for reliable, corrosion-resistant electrical cable terminations, UL/cULus listed.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 94054

Technical Specifications

• Wire Gauge: 1/0 AWG
• Stud Size: 3/8 inch
• Mounting Holes: Single
• Material: High-conductivity Seamless Electrolytic Copper
• Plating: Uniform Bright Electro-Tin
• Certifications: UL 486A Listed, cULus Listed
• Voltage Rating: 35KV
• Connector Type: Crimp
