Morris Products 94014 Short Barrel Compression Lug Copper 1 Hole 8 STR 3/8 Stud .172-.272 ID-OD 1.34-inch Length 5-Pack

Product Description

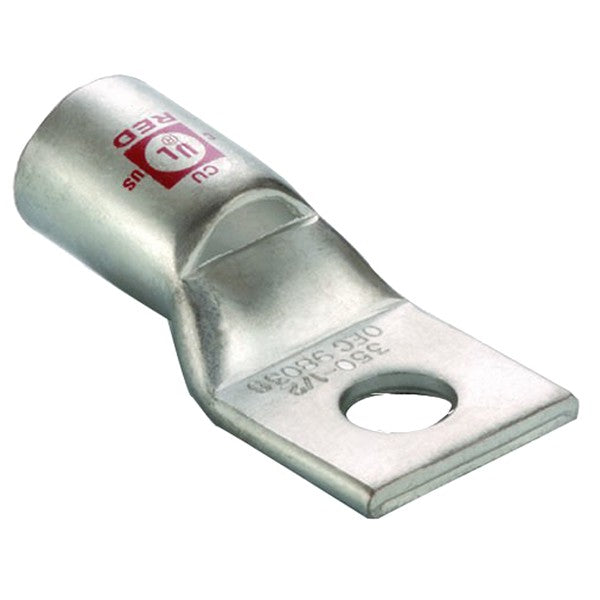

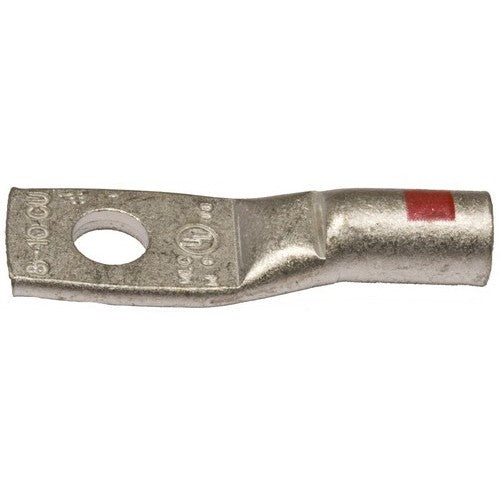

The Morris Products 94014 One Hole Copper Compression Lug is made of high-conductivity Seamless Electrolytic Copper. It features uniform bright electro-tin plating to resist corrosion and maximize conductivity. Crimp marks indicate proper crimp locations, and a peephole allows for verification of proper strand insertion. This 8 AWG lug is UL 486A Listed and cULus Listed, suitable for 35KV when properly installed.

• Made of high-conductivity Seamless Electrolytic Copper
• Uniform Bright Electro-Tin Plating resists corrosion, reduces contact resistance and maximizes conductivity
• Peephole Included for Verification of Proper Strand Insertion

Product Highlights

UL 486A Listed and cULus Listed for 35KV applications.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 94014

Technical Specifications

• Connector Type: Through Hole
• Contact Material: Copper
• Brand: Morris Products
• Temperature Rating: 221°C
• Certifications: UL 486A, cULus
• Wire Gauge: 8 AWG
• Pack Quantity: 5
• GTIN: 20601986940140
• MPN: 94014
• SKU: MORRIS-94014
• Lug Type: 1-Hole
• Model: MLC8-3/8
• UPC: 601986940146
• Length: 1.34 Inch
