Morris Products 93210 MA6 aluminum splice 35KV #6 AWG

Product Description

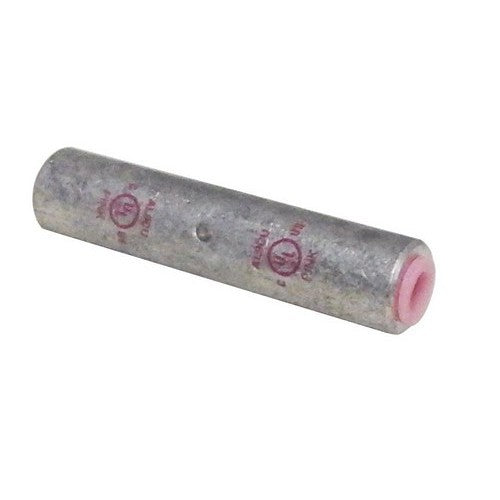

The Morris Products 93210 Aluminum Long Barrel Compression Splice is designed for secure, high-conductivity electrical connections in power distribution, grounding, and industrial wiring. These AL9CU dual-rated splices safely connect both aluminum and copper conductors. Manufactured from high-conductivity seamless aluminum with bright electro-tin plating, they offer excellent corrosion resistance and long-term electrical reliability. The long barrel design allows multiple crimp locations for improved mechanical strength and electrical conductivity, ensuring dependable connections for #6 AWG stranded conductors up to 35KV.

• AL9CU dual-rated, compatible with both aluminum and copper conductors.
• Constructed from high-conductivity seamless aluminum with electro-tin plating for corrosion resistance.
• Long barrel design with center stop, crimp marks, and die index for proper installation and secure connections.

Product Highlights

Secure, dual-rated aluminum compression splice for #6 AWG conductors, offering high conductivity and corrosion resistance for up to 35KV applications.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93210

Technical Specifications

• Material: High-Conductivity Seamless Aluminum
• Material Type: Aluminum
• Connector Type: Compression Splices
• Category: Compression Connectors and Terminals, Aluminum Compression Lugs and Splices, Aluminum Long Barrel Compression Splices
• Voltage Rating: 35KV
• Wire Gauge: 6 AWG Stranded
• Certifications: UL486B Listed AL9CU, cULus Listed
• Color Code: Gray
• Insert Diameter: 0.20 in (5.0 mm)
• Outer Diameter: 0.34 in (8.6 mm)
• Length: 1.63 in (41.4 mm)
• Conductor Compatibility: Copper & Aluminum (AL9CU Dual Rated)
• Plating: Uniform Bright Electro-Tin
