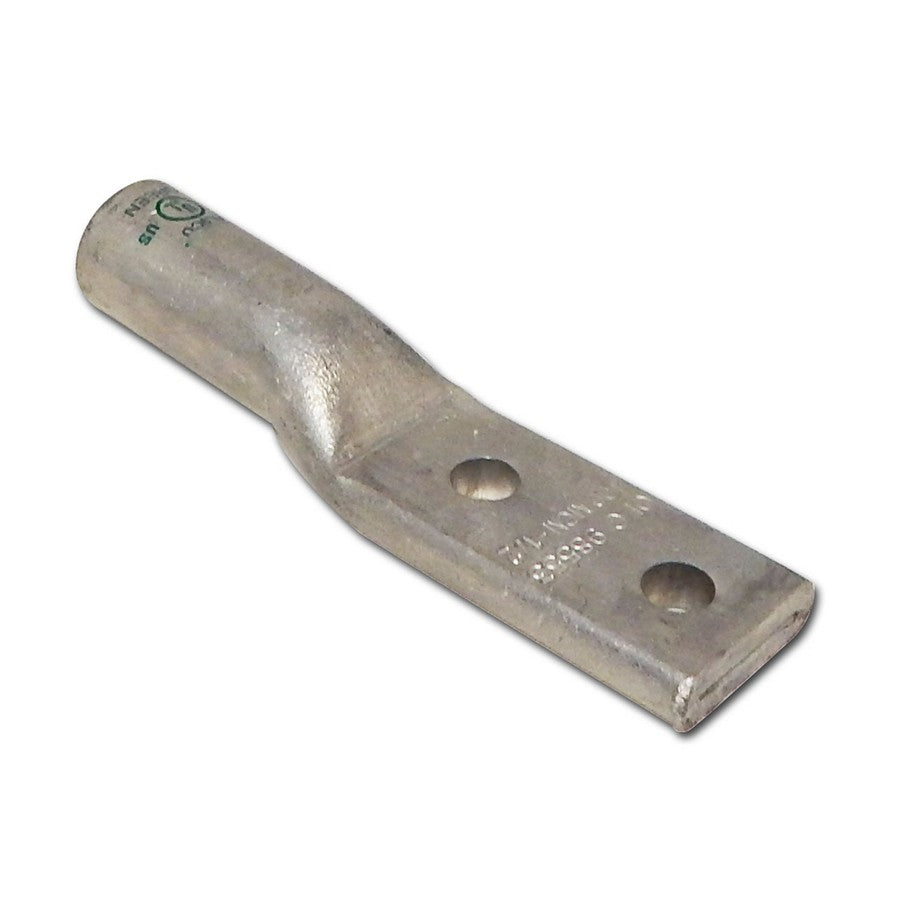

Morris Products 93126 aluminum long barrel 2-hole compression lug 35KV 500 MCM 1/2 stud

Product Description

The Morris Products 93126 is an aluminum long barrel 2-hole compression lug designed for reliable electrical connections. This dual-rated lug accommodates both aluminum and copper conductors up to 500 MCM, ensuring versatility. It features a high-conductivity seamless aluminum construction and is rated for a maximum voltage of 35KV. The connector barrels are coated with an oxide inhibitor and capped to prevent corrosion and reduce contact resistance, providing maximum conductivity for various applications.

• Dual-rated AL9CU for both aluminum and copper conductors
• High-conductivity seamless aluminum construction with electro-tin plating
• Connector barrels coated with oxide inhibitor and capped for corrosion resistance

Product Highlights

This 35KV rated compression lug offers secure, corrosion-resistant connections for 500 MCM aluminum or copper cables, featuring a long barrel design and UL486B listing.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93126

Technical Specifications

• Conductor Size: 500 MCM
• Stud Size: 1/2 inch
• Material: High-Conductivity Seamless Aluminum
• Type: Long Barrel 2-Hole Compression Lug
• Voltage Rating: 35KV
• Certifications: UL486B, cULus Listed
• UPC: 601986931267
• SKU: Morris-93126
• Mounting Holes: 2
• Conductor Type: Aluminum or Copper
• Plating: Uniform Bright Electro-Tin
• Oxide Inhibitor: Coated
• Barrel Size: 0.84 in ID x 1.32 in OD x 2.5 in L
• Mounting Hole Size: 0.51 in
• Hole Spacing: 1-3/4 in
• Temperature Rating: 90 deg C
• Overall Length: 6-1/2 in
• Tongue Size: 3.12 in L x 1.79 in W x 0.47 in THK
