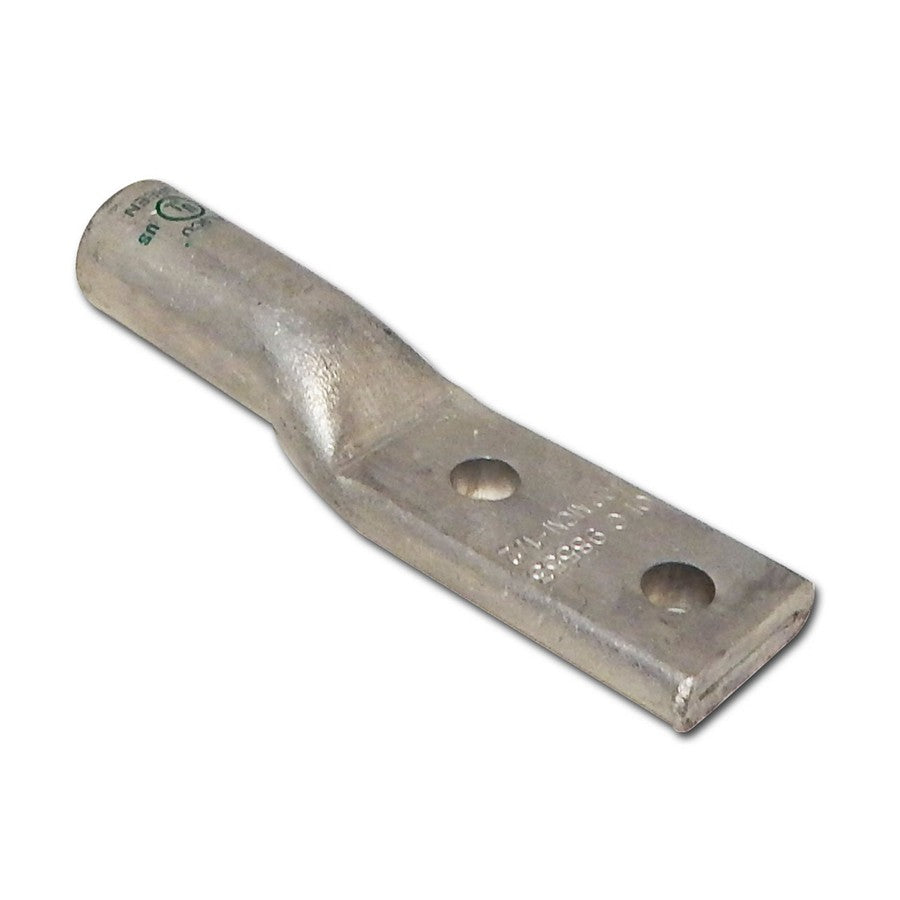

Morris Products 93124 Aluminum Long Barrel 2 Hole Compression Lugs 400 MCM - 1/2 inches Stud

Product Description

The Morris Products 93124 is an AL9CU dual-rated two-hole compression lug designed for secure electrical connections. Made from high-conductivity seamless aluminum, it accommodates both aluminum and copper conductors with a wire range of 400 MCM. The connector barrels are coated with an oxide inhibitor and capped, ensuring maximum conductivity and corrosion resistance. It is UL486B listed and rated for up to 35KV when properly installed, making it suitable for various electrical applications.

• Features 2 mounting holes for secure installation
• Color coded for easy identification of wire size
• UL486B Listed AL9CU Dual Rated for aluminum and copper conductors

Product Highlights

High-conductivity aluminum compression lug for 400 MCM wire, dual-rated for aluminum and copper conductors, and UL/cULus listed.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93124

Technical Specifications

• Material: High-Conductivity Seamless Aluminum
• Connector Type: Aluminum Compression Lugs
• Maximum Voltage: 35KV
• Wire Range: 400 MCM
• Certifications: UL Listed (UL486B AL9CU Dual Rated), cULus Listed
• Model Number: 2MLA400-1/2
• Dual Rated: AL9CU
