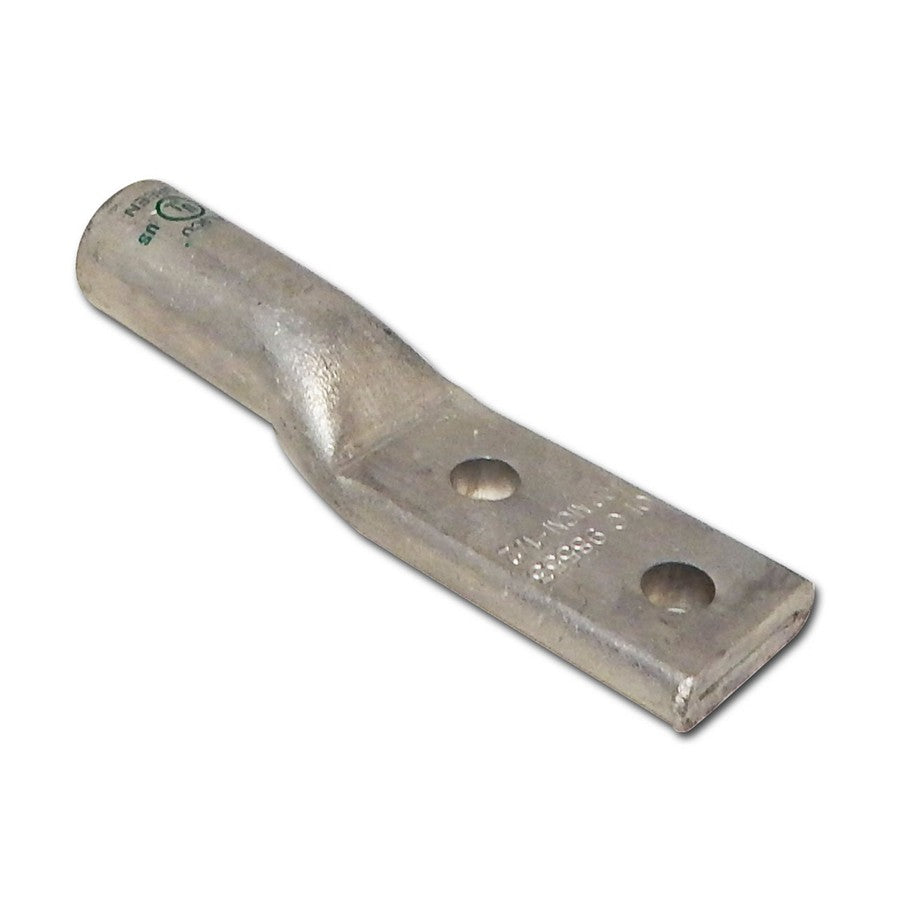

Morris Products 93120 aluminum long barrel 2 hole compression lugs 300 MCM 1/2 in stud

Product Description

The Morris Products 93120 is an aluminum long barrel, two-hole compression lug designed for both aluminum and copper conductors. Constructed from high-conductivity seamless aluminum, it features uniform bright electro-tin plating to resist corrosion, reduce contact resistance, and ensure maximum conductivity. The connector bores are coated with oxide inhibitor and capped. This lug is UL486B Listed AL9CU Dual Rated and cULus Listed, suitable for 35KV when properly installed.

• Accepts both aluminum and copper conductors, dual-rated AL9CU for versatile applications.
• Features high-conductivity seamless aluminum with electro-tin plating for corrosion resistance and maximum conductivity.
• Connector bores are coated with oxide inhibitor and capped, ensuring reliable and secure connections.

Product Highlights

Color-coded for easy identification, marked with a die index, and includes crimp marks for proper installation. Rated for 35KV.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93120

Technical Specifications

• Wire Range: 300 MCM
• Stud Size: 1/2 in
• Color: Blue
• Inside Diameter: 0.65 (16.51)
• Outside Diameter: 1.01 (25.65)
• Barrel Length: 1.6 (40.6)
• Hole Spacing: 1.75 (44.4)
• Material: High-Conductivity Seamless Aluminum
• Maximum Voltage: 35KV
• Certifications: UL486B Listed, AL9CU Dual Rated, cULus Listed
