Morris Products 93114 2MLA3/0-1/2 aluminum 2-hole lug

Product Description

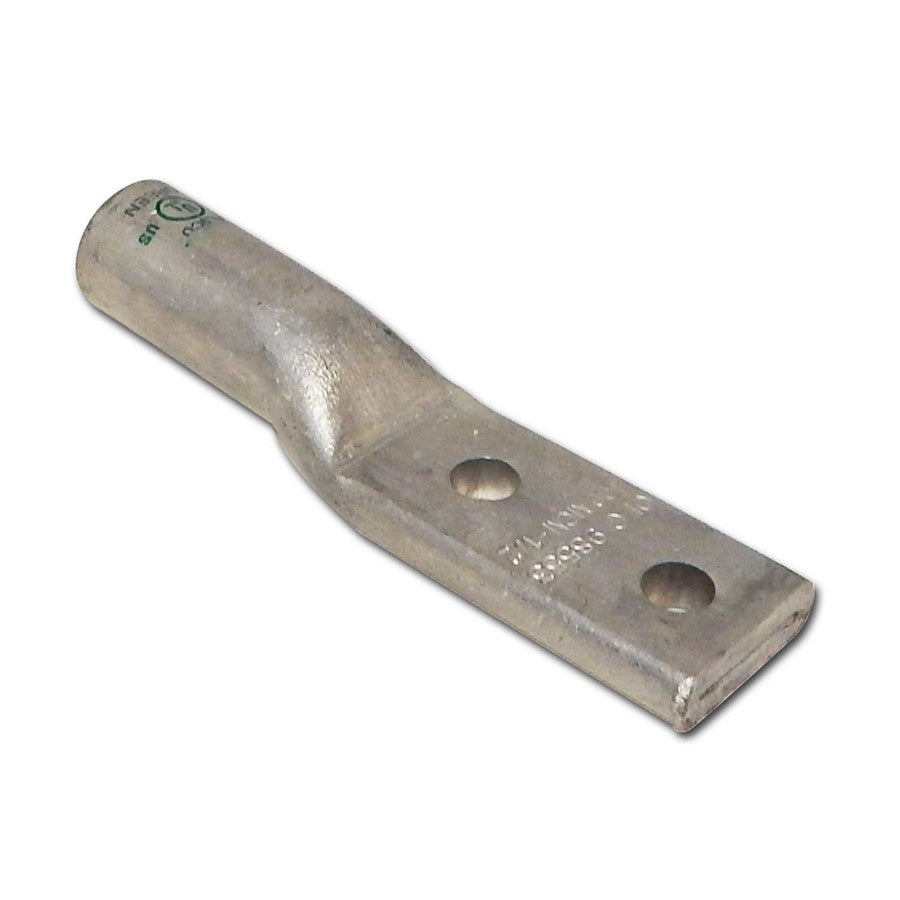

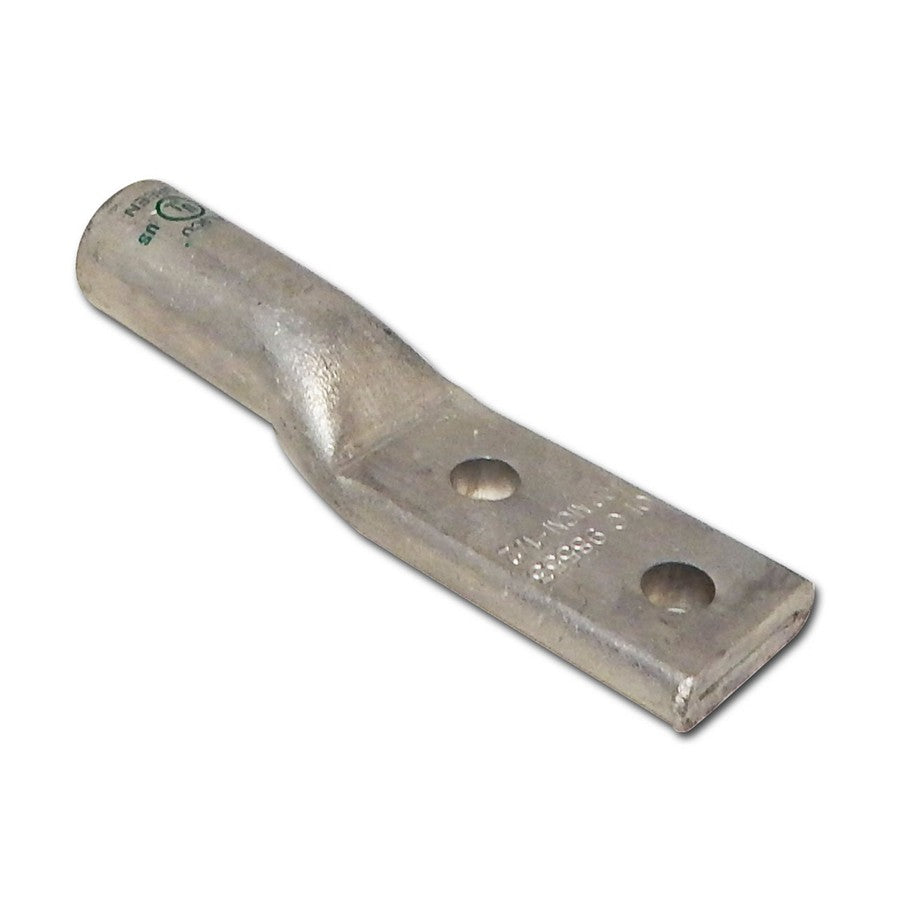

The Morris Products 93114 is an aluminum long barrel 2-hole compression lug designed for aluminum or copper cables. This AL9CU dual-rated lug accepts both conductor types and features 2 mounting holes. Its high-conductivity seamless aluminum construction with electro-tin plating resists corrosion and ensures maximum conductivity. The connector barrels are coated with oxide inhibitor and capped, providing reliable electrical connections. It is UL486B and cULus Listed, rated for 35KV when properly installed.

• Dual-rated for use with both aluminum and copper cables.
• Constructed from high-conductivity seamless aluminum with electro-tin plating for corrosion resistance.
• UL486B and cULus Listed, ensuring safety and performance up to 35KV.

Product Highlights

Dual-rated for aluminum and copper cables, featuring corrosion-resistant electro-tin plating and 35KV rating.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93114

Technical Specifications

• Material: High-Conductivity Seamless Aluminum
• Material Type: Aluminum
• Connector Type: Aluminum Compression Lugs
• Maximum Voltage: 35KV
• Wire Size: 3/0 Str.
• Certifications: cUL/UL Listed
• Stud Size: 1/2-in
• UPC: 601986931144
