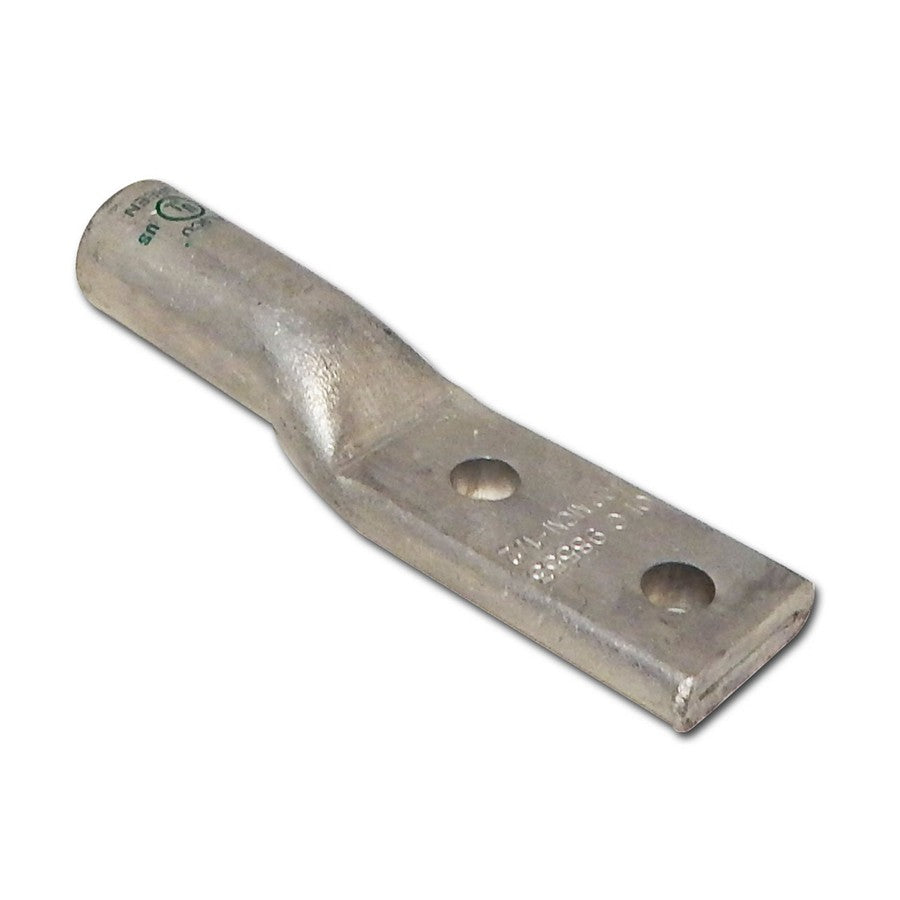

Morris Products 93110 Aluminum Long Barrel 2 Hole Compression Lugs 1/0 - 3/8 Stud

Product Description

The Morris Products 93110 is an aluminum long barrel, two-hole compression lug designed for secure electrical connections. This lug is dual-rated, accepting both aluminum and copper conductors, making it suitable for various applications. It is constructed from high-conductivity seamless aluminum with a uniform bright electro-tin plating, which provides corrosion resistance and maximum conductivity. The connector barrels are coated with an oxide inhibitor and capped. This lug is UL486B and cULus Listed, rated for 35KV when properly installed.

• Dual-rated two-hole compression lug for aluminum or copper cables.
• Features uniform bright electro-tin plating for corrosion resistance and conductivity.
• UL486B Listed AL9CU Dual Rated and cULus Listed, rated for 35KV.

Product Highlights

High-conductivity seamless aluminum lug with electro-tin plating, dual-rated for aluminum or copper cables, UL/cULus listed for 35KV.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93110

Technical Specifications

• Mounting Holes: 2
• Conductor Type: Aluminum or Copper
• Barrel Coating: Oxide Inhibitor
• Material: High-Conductivity Seamless Aluminum
• Plating: Uniform Bright Electro-Tin
• Voltage Rating: 35KV
• Certifications: UL486B Listed, cULus Listed
• Stud Size: 3/8
• Wire Size: 1/0
