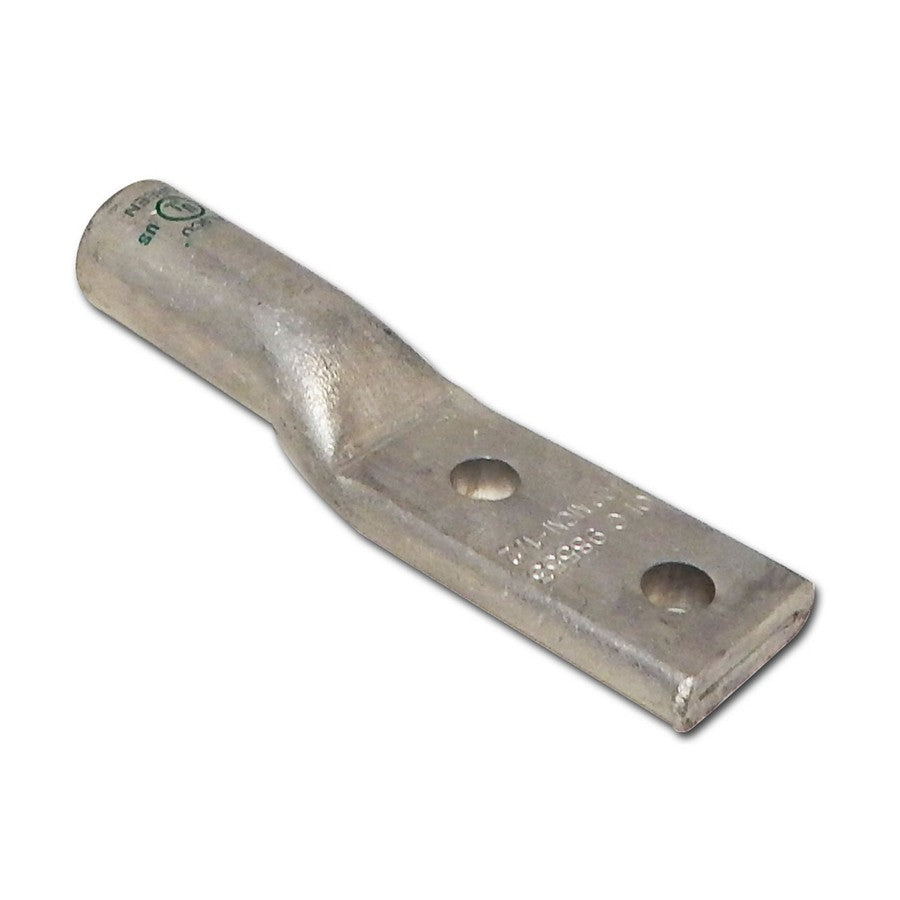

Morris Products 93109 Aluminum Long Barrel 2 Hole Compression Lugs 2/0 - 3/8 Stud

Product Description

Morris Products 93109 Aluminum Long Barrel 2 Hole Compression Lugs are dual-rated for aluminum or copper cables. These lugs feature two mounting holes and are constructed from high-conductivity seamless aluminum. The connector barrels are coated with an oxide inhibitor and capped, ensuring optimal performance. Uniform bright electro-tin plating resists corrosion and reduces contact resistance, providing maximum conductivity. They are color-coded for easy identification and marked with die index and crimp marks for proper installation. UL486B and cULus Listed, rated for 35KV when properly installed.

• Dual rated for aluminum or copper cables, accepting both conductor types.
• Features two mounting holes and high-conductivity seamless aluminum construction.
• Electro-tin plating resists corrosion, ensuring maximum conductivity and durability.

Product Highlights

Dual-rated aluminum compression lug with two mounting holes, electro-tin plating, and 35KV rating.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93109

Technical Specifications

• Mounting Holes: 2
• Dual Rated: AL9CU (Aluminum or Copper)
• Connector Barrels: Coated with Oxide Inhibitor & capped
• Material: High-Conductivity Seamless Aluminum
• Plating: Uniform Bright Electro-Tin
• Color Coded: For Easy Identification
• Die Index: Marked
• Crimp Marks: Indicate Proper Crimp Locations
• Certifications: UL486B Listed AL9CU Dual Rated, cULus Listed
• Voltage Rating: 35KV
• Wire Range: 2/0 Str.
• Connector Type: Aluminum Compression Lugs
