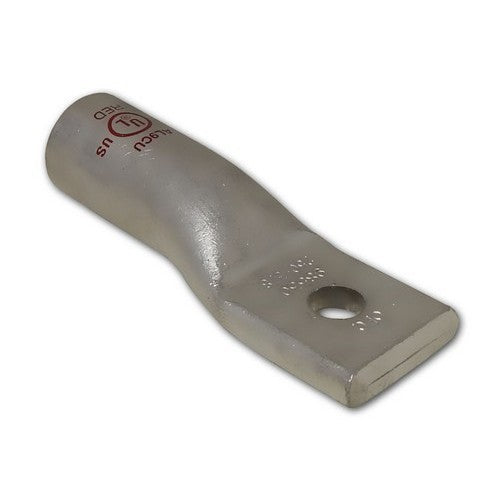

Morris Products 93082 MLA500-1/2 straight barrel one-hole compression lug 500kcmil 1/2

Product Description

The Morris Products 93082 is a straight barrel one-hole compression lug designed for secure electrical connections. This AL9CU dual-rated aluminum lug accepts both aluminum and copper conductors, ensuring versatility. Its high-conductivity seamless aluminum construction features uniform bright electro-tin plating, which resists corrosion and reduces contact resistance for maximum conductivity. The connector barrel is coated with an oxide inhibitor and capped, providing enhanced protection and performance for 500kcmil wire.

• AL9CU dual-rated for use with both aluminum and copper conductors
• Constructed from high-conductivity seamless aluminum with electro-tin plating
• CSA Certified and UL Listed for compliance and safety standards

Product Highlights

Durable aluminum compression lug with electro-tin plating for corrosion resistance and maximum conductivity, suitable for 500kcmil wire.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93082
• Country of Origin: United States

Technical Specifications

• Connector Style: Crimp
• Number of Ports: 1
• Termination Type: Compression
• Standards/Compliance: CSA Certified, UL Listed
• Material: High-Conductivity Seamless Aluminum
• Connector Type: Aluminum Compression Lugs
• Electrical Supplies Type: Compression Connectors and Terminals, Aluminum Compression Lugs and Splices, Aluminum Long Barrel 1 Hole Compression Lugs
• Maximum Voltage: 35KV
• Wire/Stud Size: 500 MCM x 1/2
• Lug Type: Long Barrel 1-Hole Compression Lug
