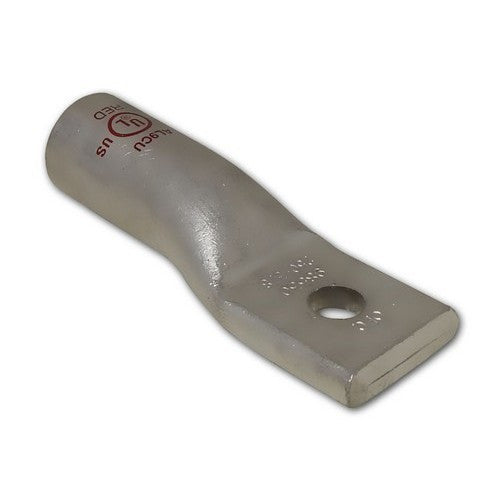

Morris Products 93074 MLA350-1/2 aluminum 1-hole lug 350 MCM 1/2 inches stud

Product Description

The MORRIS PRODUCTS 93074 is a one-hole compression lug designed for secure electrical connections. This AL9CU dual-rated lug accepts both aluminum and copper conductors, making it versatile for various wiring applications. Constructed from high-conductivity seamless aluminum, its connector barrel is coated with an oxide inhibitor and capped. Uniform bright electro-tin plating provides corrosion resistance, reduces contact resistance, and ensures maximum conductivity for reliable performance in electrical systems up to 35KV.

• AL9CU dual-rated for aluminum and copper conductors for versatile use.
• High-conductivity seamless aluminum construction with electro-tin plating for corrosion resistance.
• Connector barrel coated with oxide inhibitor and capped for enhanced protection and reliability.

Product Highlights

Ensures maximum conductivity and corrosion resistance for reliable electrical connections.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93074

Technical Specifications

• MPN: 93074
• Model: MLA350-1/2
• Material: High-Conductivity Seamless Aluminum
• Type: 1-Hole Lug
• Connector Type: Aluminum Compression Lugs
• Maximum Voltage: 35KV
• Wire Range: 350MCM
• UL Listed: Yes
• UPC: 601986930741
• SKU: Morris-93074
• Stud Size: 1/2 ''
• Color Code: Brown
• Inside Diameter: .72
• Outside Diameter: 1.12
• Barrel Length: 4.25
• Holes: 1
• Plating: Uniform Bright Electro-Tin
• Rating: AL9CU Dual Rated (Aluminum and Copper Conductors)
• Certifications: UL486B Listed AL9CU, cULus Listed
