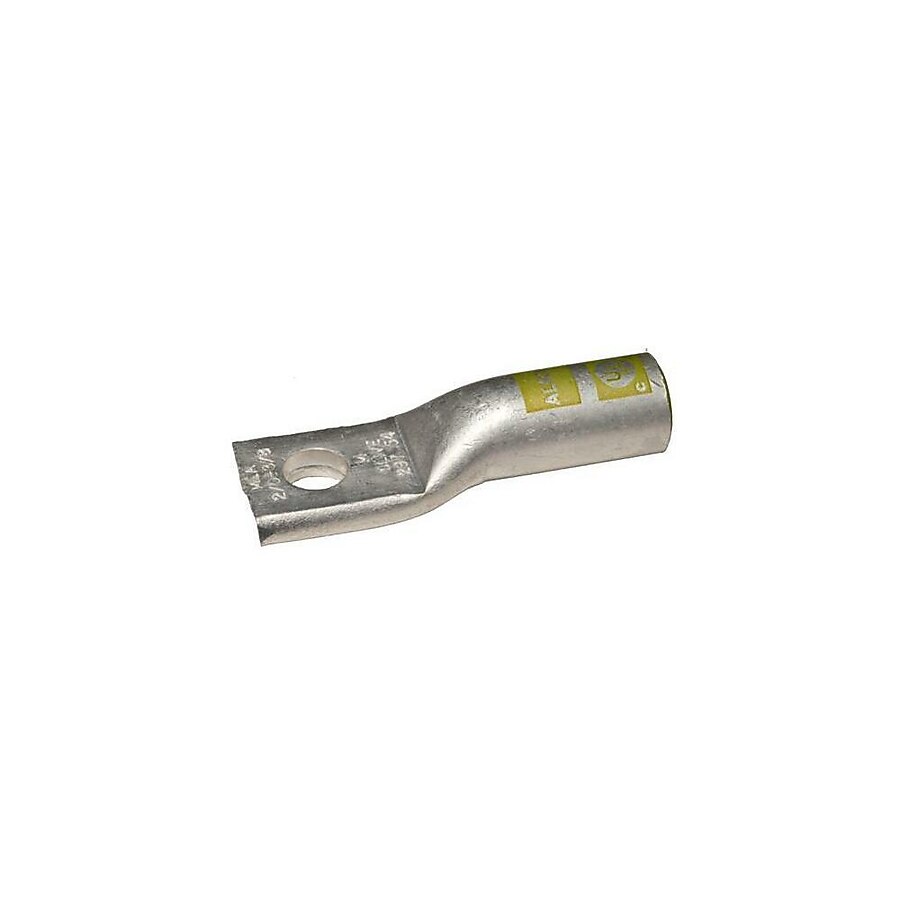

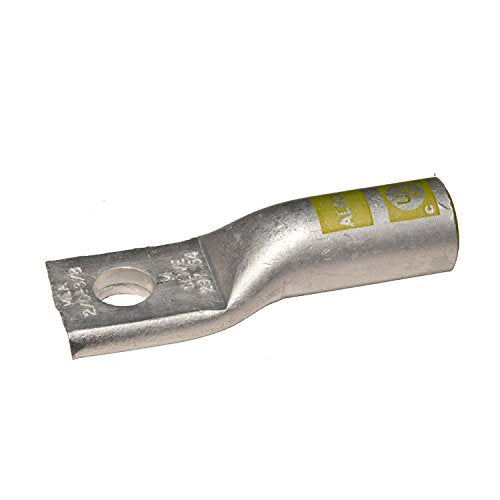

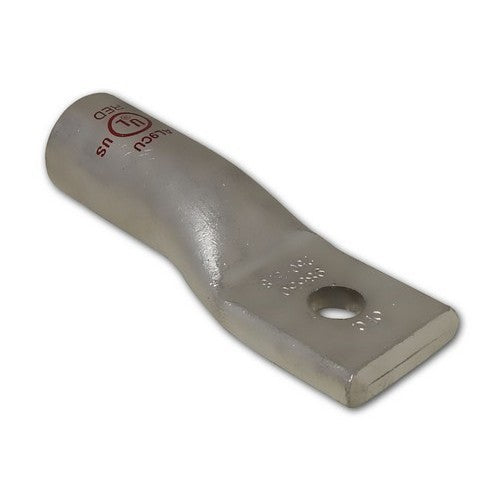

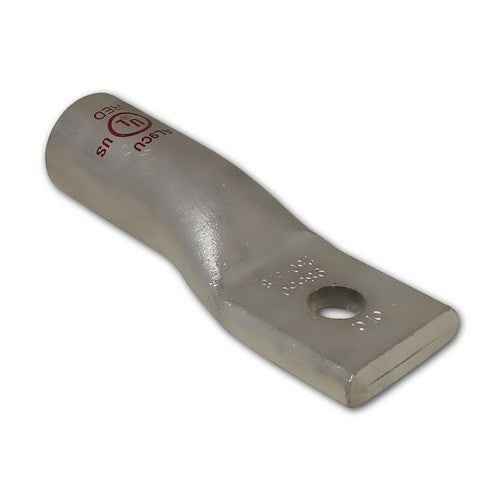

Morris Products 93070 Aluminum Long Barrel 1 Hole Compression Lugs 300 MCM - 1/2 inches Stud

Product Description

The Morris Products 93070 is a one-hole compression lug designed for secure electrical connections. This AL9CU dual-rated connector accepts both aluminum and copper conductors up to 300MCM, ensuring versatility for various wiring applications. Constructed from high-conductivity seamless aluminum, it features uniform bright electro-tin plating to resist corrosion and reduce contact resistance, providing maximum conductivity for systems up to 35KV.

• AL9CU Dual Rated, accepting both aluminum and copper conductors
• Connector barrel coated with oxide inhibitor and capped for enhanced protection
• Made of high-conductivity seamless aluminum for optimal performance

Product Highlights

Uniform bright electro-tin plating resists corrosion and reduces contact resistance, ensuring maximum conductivity.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93070
• Country of Origin: United States

Technical Specifications

• Brand: Morris Products
• MPN: 93070
• Material: High-Conductivity Seamless Aluminum
• Connector Type: Aluminum Compression Lugs
• Electrical Supplies Type: Compression Connectors and Terminals, Aluminum Compression Lugs and Splices, Aluminum Long Barrel 1 Hole Compression Lugs
• Maximum Voltage: 35KV
• Wire Range: 300MCM
• UL Listed: Yes
• UPC: 601986930703
• SKU: Morris-93070
• Stud Size: 1/2 inch
• Color Code: Blue
• Inside Diameter: 0.65 inches (16.5 mm)
• Outside Diameter: 1.01 inches (25.7 mm)
• Barrel Length: 4 inches
• Number of Holes: 1
