Morris Products 93066 compression lug 35 kV 250 kcmil wire 1/2 in stud

Product Description

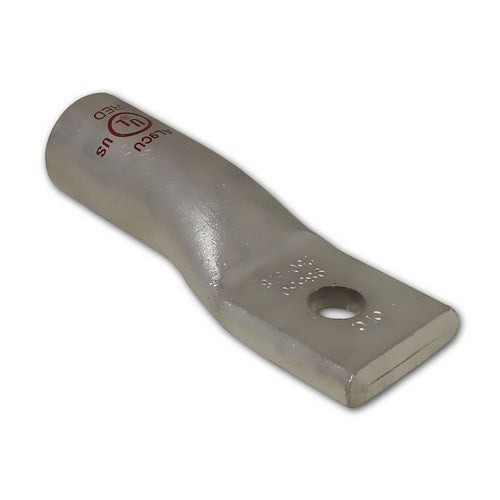

The Morris Products 93066 Compression Lug is designed for electrical connections, rated for 35 kV and suitable for 250 kcmil wire. This aluminum contact lug features a 1/2 inch stud and measures 3.5 inches in length. It is dual-rated for use with both copper and aluminum cables, ensuring versatile application in various electrical systems. The connector barrel is coated with an oxide inhibitor and capped.

• Dual-rated for use with both copper and aluminum cables
• Connector barrel coated with oxide inhibitor and capped
• Constructed from high-conductivity seamless aluminum

Product Highlights

Features electro-tin plating for corrosion resistance and is UL486B listed for 35KV applications.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93066

Technical Specifications

• Voltage Rating: 35 kV
• Wire Size: 250 kcmil
• Stud Size: 1/2 in
• Contact Material: Aluminum
• Material: High-Conductivity Seamless Aluminum
• Type: 1-Hole Lug
• Model/Series: MLA250-1/2
• Connector Type: Aluminum Compression Lugs
• Electrical Supplies Type: Compression Connectors and Terminals, Aluminum Compression Lugs and Splices, Aluminum Long Barrel 1 Hole Compression Lugs
• Certifications: UL486B Listed AL9CU, cULus Listed
