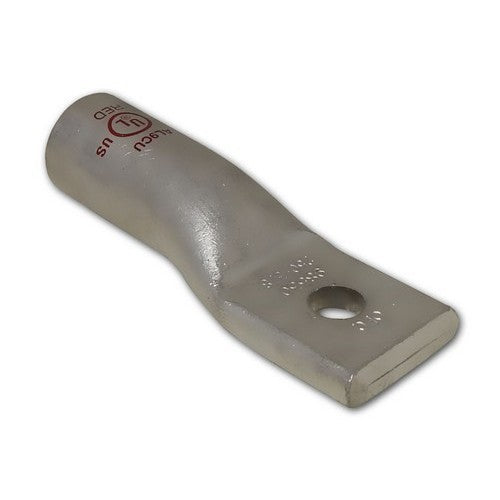

Morris Products 93054 Aluminum Long Barrel 1 Hole Compression Lugs 3/0 Awg - 1/2 Stud

Product Description

The Morris Products 93054 is an Aluminum Long Barrel 1 Hole Compression Lug designed for use with both copper and aluminum cables. This AL9CU dual-rated lug features a high-conductivity seamless aluminum construction and a uniform bright electro-tin plating for corrosion resistance and maximum conductivity. The connector barrel is coated with an oxide inhibitor and capped, ensuring reliable connections for 3/0 AWG wires and 1/2 inch studs.

• AL9CU dual-rated, compatible with both aluminum and copper conductors.
• Features a uniform bright electro-tin plating for corrosion resistance and optimal conductivity.
• Connector barrel is coated with oxide inhibitor and capped, with a single mounting hole.

Product Highlights

This compression lug is UL486B and cULus Listed, rated for 35KV, and includes crimp marks for proper installation.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93054

Technical Specifications

• Wire Range: 3/0 AWG
• Stud Size: 1/2 inch
• Conductor Type: Aluminum and Copper
• Rating: AL9CU Dual Rated
• Barrel Coating: Oxide Inhibitor & Capped
• Material: High-Conductivity Seamless Aluminum
• Plating: Uniform Bright Electro-Tin
• Mounting Hole Quantity: Single
• Identification: Color Coded
• Die Index: Marked
• Crimp Indication: Crimp Marks
• UL Listing: UL486B Listed AL9CU
• Voltage Rating: 35KV
• cULus Listed: Yes
• Connector Type: Aluminum Compression Lugs
• Electrical Supplies Type: Compression Connectors and Terminals, Aluminum Compression Lugs and Splices, Aluminum Long Barrel 1 Hole Compression Lugs
• Color Code: Ruby
• Inside Diameter: 0.48 inches (12.2 mm)
• Outside Diameter: 0.76 inches (19.3 mm)
• Barrel Length: 1.4 inches (35.6 mm)
• Connector Mechanism: Crimp
