Description

Product Description

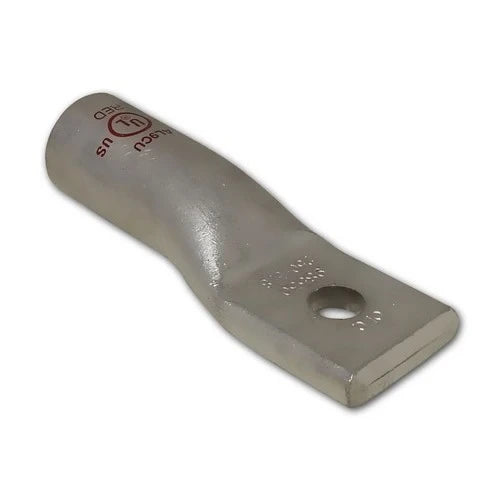

Morris Products 93052 is a one-hole aluminum long-barrel compression lug, AL9CU dual rated for use with 3/0 stranded conductors and a 3/8 in stud. The connector barrel is coated with an oxide inhibitor and capped, and the lug features bright electro-tin plating to reduce contact resistance. The part is UL486B and cULus listed and is listed for 35 kV when properly installed.

  • AL9CU dual rated to accept both aluminum and copper conductors; fits 3/0 AWG with 3/8 in stud
  • High-conductivity seamless aluminum construction with uniform bright electro-tin plating and oxide-inhibitor coated, capped barrel
  • Marked with die index and crimp marks for proper crimp locations; UL486B and cULus listings; listed for 35 kV when properly installed

Product Highlights

One-hole long-barrel aluminum compression lug, AL9CU dual rated, 3/0 AWG to 3/8 in stud, electro-tin plated, UL486B and cULus listed (35 kV when installed)

Product Information

Standard Information

  • Brand: MORRIS PRODUCTS
  • Manufacturer Part Number: 93052
Technical Specifications
Brand
Morris Products
Manufacturer Part Number
93052
Product Type
One-hole long-barrel compression lug
Conductor Compatibility
AL9CU dual rated (accepts aluminum and copper conductors)
Conductor Size / Wire Range
3/0 AWG (3/0 stranded)
Stud Size
3/8 in
Material
High-conductivity seamless aluminum
Plating / Finish
Uniform bright electro-tin plating
Connector Barrel
Long barrel; coated with oxide inhibitor and capped
Markings / Identification
Marked with die index and crimp marks (color coding for identification noted)
Listings / Certifications
UL486B listed (AL9CU); cULus listed; listed for 35 kV when properly installed
Voltage Rating
35 kV (when properly installed)
Dimensions
3.00 in L x 1.03 in W
