Morris Products 93046 Aluminum Long Barrel 1-Hole Compression Lug 2/0 AWG 1/2 inches Stud

Product Description

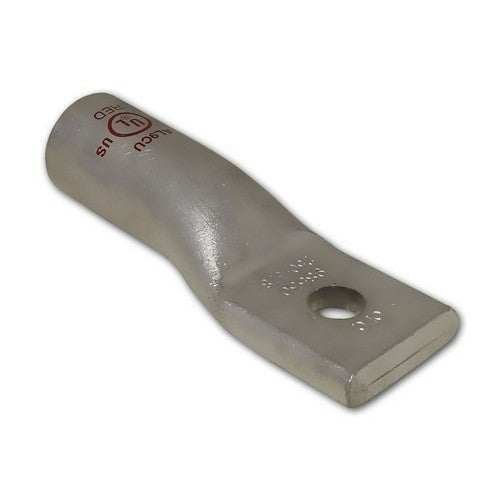

Morris Products 93046 is an aluminum long-barrel one-hole compression lug for 2/0 AWG conductors and a 1/2 inch stud. The AL9CU dual-rated lug accepts both aluminum and copper conductors, features a connector barrel coated with an oxide inhibitor and cap, and has bright electro-tin plating to reduce contact resistance. The lug is UL486B and cULus listed and is listed for 35 kV when properly installed.

• AL9CU dual rated for use with aluminum and copper conductors; accepts 2/0 AWG stranded wire and fits 1/2 inch stud.
• High-conductivity seamless aluminum construction with uniform bright electro-tin plating; connector barrel coated with oxide inhibitor and capped.
• UL486B and cULus listed; marked with die index and crimp marks to indicate proper crimp locations; listed for 35 kV when properly installed.

Product Highlights

One-hole long-barrel compression lug for 2/0 AWG, 1/2" stud; AL9CU dual-rated; electro-tin plated; UL486B and cULus listed.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93046
