Morris Products 93038 aluminum long barrel 1 hole compression lugs 35kv 1/0 awg 3/8 stud MLA 1/0-0.38

Product Description

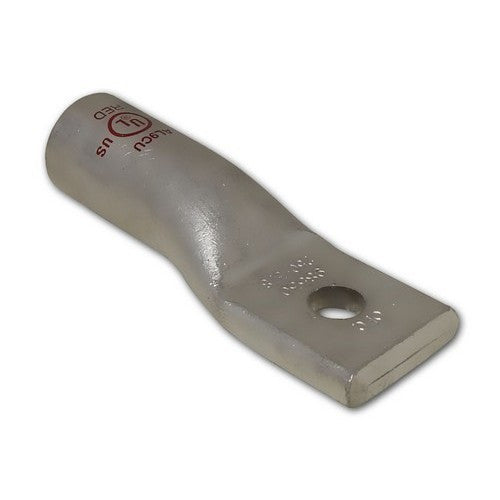

Morris Products 93038 is an Aluminum Long Barrel 1 Hole Compression Lug designed for use with 1/0 AWG copper or aluminum cables and a 3/8 inch stud. This AL9CU dual-rated lug accepts both conductor types and is made from high-conductivity seamless aluminum. It features uniform bright electro-tin plating for corrosion resistance and maximum conductivity, and is UL486B listed for 35KV when properly installed.

• AL9CU Dual Rated, accepts both Aluminum and Copper Conductors
• Connector barrel coated with Oxide Inhibitor & capped
• Uniform Bright Electro-Tin Plating resists corrosion and reduces contact resistance

Product Highlights

High-conductivity seamless aluminum lug with single mounting hole, UL486B listed for 35KV.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93038
• Country of Origin: United States

Technical Specifications

• Conductor Compatibility: Copper or Aluminum Cables
• Rating: AL9CU Dual Rated
• Barrel Feature: Coated with Oxide Inhibitor & capped
• Material: High-Conductivity Seamless Aluminum
• Plating: Uniform Bright Electro-Tin Plating
• Mounting Holes: Single Mounting Hole
• Identification: Color Coded
• Die Index: Marked
• Crimp Locations: Indicate Proper Crimp Locations
• UL Standard: UL486B
• Voltage Rating: 35KV
• Certifications: UL486B, cULus Listed
• Connector Style: Crimp
• Connector Type: Aluminum Compression Lugs
• Gender: Female
• Wire Size: 1/0 AWG
• Stud Size: 3/8 inch
• Color: Tan
• Model: MLA 1/0-0.38
