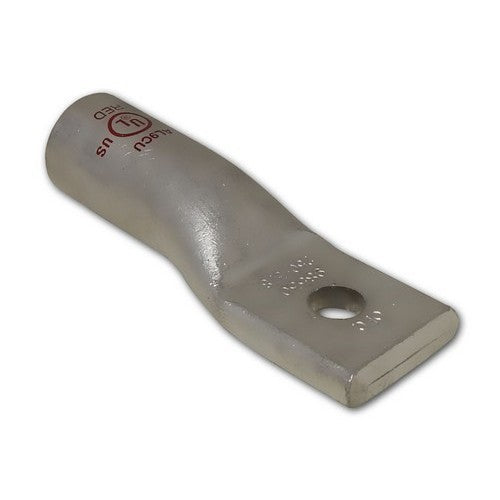

Morris Products 93024 aluminum long barrel 1 hole compression lugs 2 str -5/16 in MLA2.31

Product Description

The Morris Products 93024 is an aluminum long barrel 1-hole compression lug designed for electrical connections. This highly-conductive lug accepts both aluminum and copper conductors, making it AL9CU dual-rated. Its connector bore is coated with an oxide inhibitor and capped to prevent corrosion. Constructed from seamless, high-conductivity aluminum, it features uniform bright electro-tin plating to resist corrosion, reduce contact resistance, and ensure maximum conductivity. It is UL486B listed and rated for 35KV when properly installed.

• Accepts both aluminum and copper conductors (AL9CU dual-rated)
• Connector bores are coated with oxide inhibitor and capped
• Made of high-conductivity seamless aluminum with electro-tin plating

Product Highlights

AL9CU dual-rated for aluminum and copper conductors, featuring high conductivity, corrosion resistance, and 35KV rating.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93024

Technical Specifications

• Wire Range: 2 Str
• Stud Size: -5/16 in
• Color Code: Pink
• Inside Diameter: .31 inches (7.9 mm)
• Outside Diameter: .53 inches (13.5 mm)
• Barrel Length: 1.2 inches (30.5 mm)
• Material: High-Conductivity Seamless Aluminum
• Lug Type: 1-Hole
• Model Identifier: MLA2-5/16
• Connector Type: Aluminum Compression Lugs
• Maximum Voltage: 35KV
• UL Listed: Yes
• Plating: Electro-Tin
• Certifications: UL486B, cULus
• Mounting Type: Single Hole
