Morris Products 91610 Heavy Duty Ground Clamp 1/2-1 inches Pipe Range 3/8-1 inches Rebar Range 8-4/0 Wire Range

Product Description

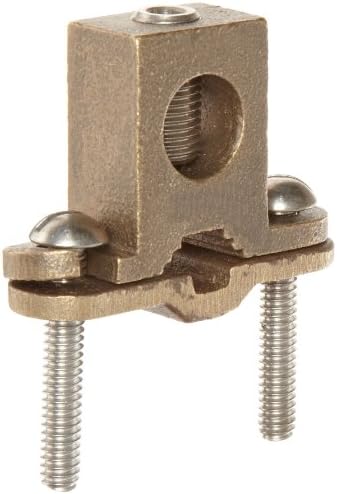

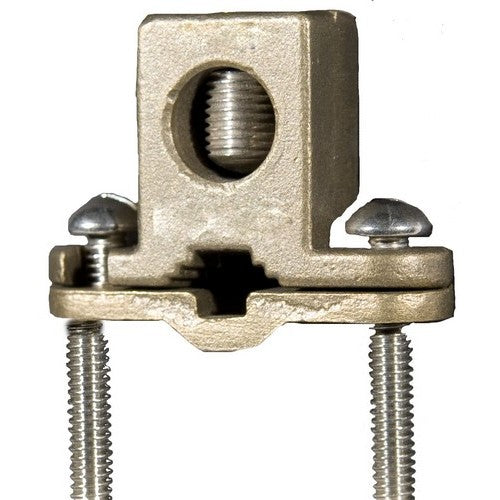

The MORRIS PRODUCTS 91610 Heavy Duty Ground Clamp connects grounding conductors to water pipes, ground rods, copper tubing, or rebar up to 1 inch in diameter. This non-insulated clamp accommodates #8 through 4/0 ground conductors and is cast from high-strength, high-conductivity copper. Supplied with stainless steel set screws, it is suitable for direct burial in earth and concrete, providing maximum conductivity and strength for grounding and bonding applications.

• Connects grounding conductor to water pipe, ground rods, copper tubing, or rebar up to 1 inch.
• Accommodates #8 through 4/0 ground conductors for versatile applications.
• Constructed from high-strength, high-conductivity copper with stainless steel set screws.

Product Highlights

UL467 Listed for direct burial and grounding bonding applications, ensuring safety and compliance.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 91610
• Country of Origin: US

Technical Specifications

• Contact Material: Copper
• Insulation Material: Non-Insulated
• Temperature Rating: -40 to 120 F
• Compliance: UL467 Listed
• Wire Range: 8-4/0 AWG
• Pipe Range: 1/2-1 inch
• Rebar Range: 3/8-1 inch
