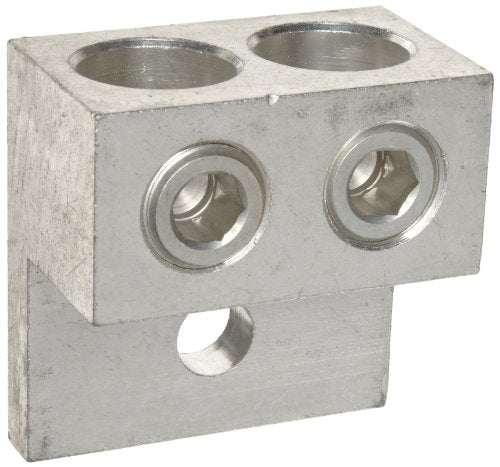

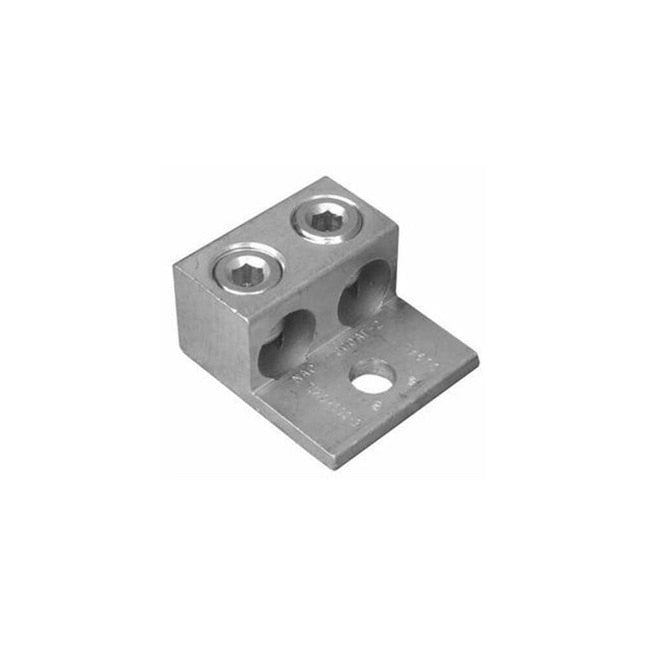

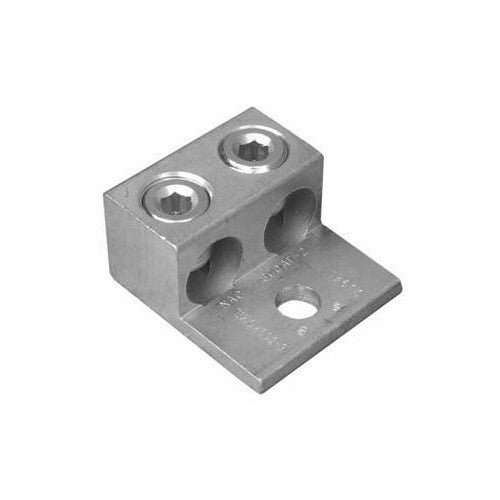

Morris Products 90824 mechanical lug, two conductors, one hole mount, aluminum 600V 1000 AWG, 1000mcm - 350mcm wire range

Product Description

Morris Products 90824 is a mechanical lug designed for two conductors with a one-hole mount. Constructed from high strength 6061-T6 aluminum alloy, this lug ensures maximum strength and conductivity. It is rated for 600V and 194°F (90°C) and accommodates a wire range of 1000 AWG to 350mcm. The lug is AL9CU dual rated for both copper and aluminum conductors, and electro-tin plated for low contact resistance and corrosion protection, making it suitable for various electrical connection applications. It is UL486B/CSA Listed.

• Manufactured from high strength 6061-T6 Aluminum Alloy for maximum strength and conductivity.
• AL9CU Dual Rated for both Copper and Aluminum Conductors.
• Electro-Tin Plated to provide low contact resistance and protection against corrosion.

Product Highlights

Features NEMA Standard Mounting Hole Drilling with 1-3/4” centers, UL486B/CSA Listed, and re-usable design for flexible installation.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90824
• Country of Origin: India

Technical Specifications

• Conductors: Two
• Mount Type: One Hole Mount
• Material: High strength 6061-T6 Aluminum Alloy
• Wire Range: 1000mcm - 350mcm
• Voltage Rating: 600V
• Temperature Rating: 194°F (90°C)
• Certifications: UL486B/CSA Listed
• Bolt Hole Diameter: 0.66 in
• Connector Style: Mechanical
• Mounting Hole Drilling: NEMA Standard 1-3/4” Centers
• Conductor Compatibility: AL9CU Dual Rated for both Copper and Aluminum Conductors
• Plating: Electro-Tin Plated
