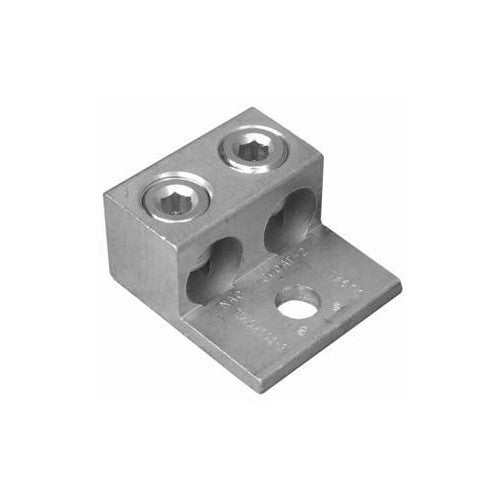

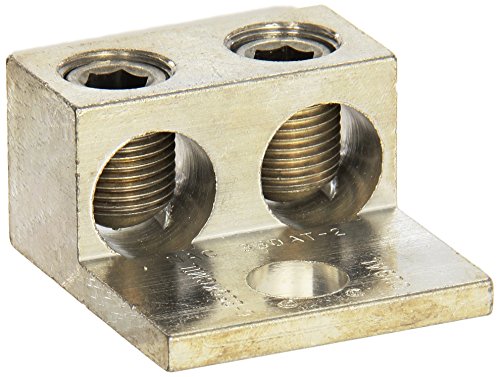

Morris Products 90818 350 2-Conductor 1-Hole Aluminum Lug

Product Description

The Morris Products 90818 is a 350 2-Conductor 1-Hole Aluminum Lug. This mechanical connector provides flexibility in installation. It is manufactured from high strength 6061-T6 aluminum alloy to ensure maximum strength and conductivity. This lug is dual rated for both copper and aluminum conductors.

• Double Barrel
• Mechanical Lug
• 350 MCM - #6 AWG

Product Highlights

This aluminum mechanical lug features two conductors and a one-hole mount. It is electro-tin plated for corrosion protection and low contact resistance.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90818
• Country of Origin: India

Technical Specifications

• Number of Ports: 2
• Connector Style: Mechanical
• Contact Material: Aluminum
• Compatible Wire Gauge (AWG): 350 KCMILS
• Compatible Mounting Type: Through Hole
• Voltage: 600V
• Width: 1.88 Inch
• Height: 1.09 Inch
• Length: 2.12 Inch
• Conductors: Two Conductors
• Wire Size: 350MCM-#6 Awg
• Mount: One Hole Mount
• Material: 6061-T6 Aluminum Alloy
• Rating: AL9CU Dual Rated
• Temperature: 194°F (90°C)
• Listing: UL486B/CSA Listed
