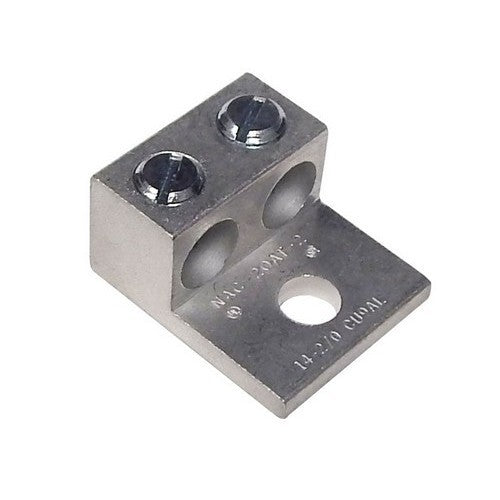

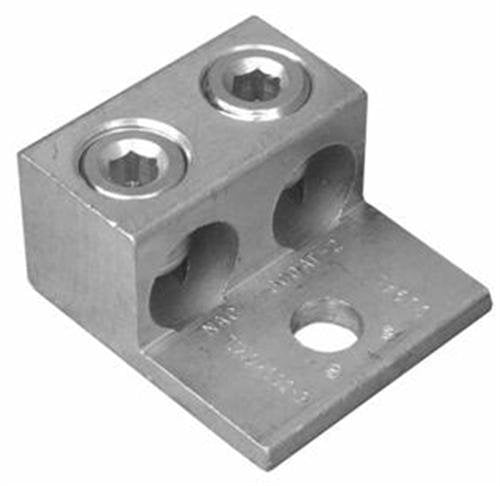

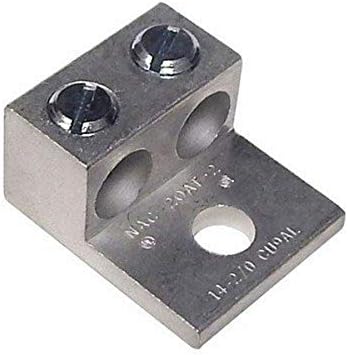

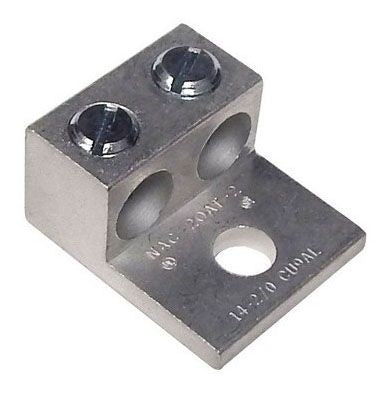

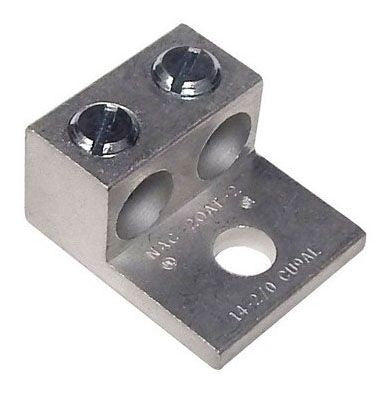

Morris Products 90814 2/0 2-Conductor 1-Hole Aluminum Lug 600V 2/0 AWG

Product Description

The Morris Products 90814 mechanical lug is constructed from 6061-T6 Electro Tin Plated Aluminum Alloy. This 600 Volt rated lug accommodates two conductors, supporting a wire range from 14 AWG Solid to 2/0 AWG Stranded. Designed for aluminum conductors, it ensures reliable electrical connections in various applications. Its one-hole design and slotted screws facilitate flexible installation.

• Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity.
• AL9CU dual rated for both copper and aluminum conductors.
• Electro-tin plated to provide low contact resistance and protection against corrosion.

Product Highlights

UL 486B/41968 and CSA approved, RoHS compliant, with a 90 Deg C temperature rating.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90814

Technical Specifications

• Material: 6061-T6 Electro Tin Plated Aluminum Alloy
• Length: 1.47 Inch
• Minimum Conductor Size: 14 AWG Solid
• Maximum Conductor Size: 2/0 AWG Stranded
• Wire Range: 2/0 AWG, 2/OSTR.-14SOL.
• Conductor Material: Aluminum
• Certifications: UL 486B/41968, CSA
• Number of Conductors: 2
• Stud Size: 0.28 Inch
• Pad Width: 1.19 Inch
• Number of Pad Holes: 1
• Screw Type: Slotted
• RoHS Compliant: Yes
• Voltage Rating: 600 Volt
• Height: 0.75 Inch
• Temperature Rating: 90 Deg C
• Terminal Type: Screw Terminal
• Contact Coating: Electro-Tin-Plated
