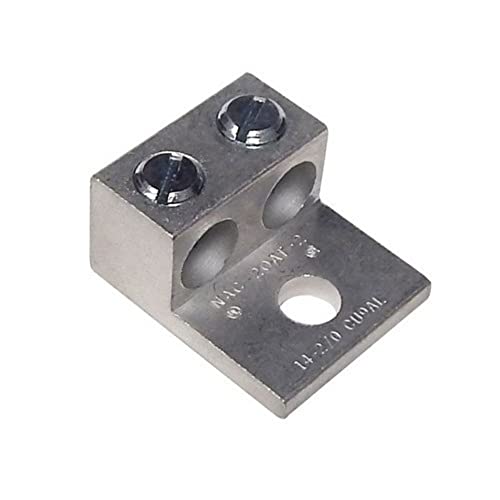

Morris Products 90812 mechanical lug two conductors one hole mount aluminum 600v 1/0str.-14sol. wire range 2-pack

Product Description

The Morris Products 90812 mechanical lug is constructed from 6061-T6 aluminum alloy, designed for durability and conductivity in electrical applications. This dual-rated connector is compatible with both copper and aluminum conductors, offering installation flexibility. It features electro-tin plating for corrosion resistance and reduced contact resistance. Rated for 600V and 90°C (194°F), it meets industry standards with NEMA standard 1-3/4” center hole spacing.

• Premium 6061-T6 Aluminum Construction
• Dual-Rated for Copper & Aluminum Conductors (AL9CU)
• Electro-Tin Plated for Corrosion Resistance

Product Highlights

Fast, Tool-Friendly Installation

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90812
• Country of Origin: Unknown

Technical Specifications

• Connector Type: Mechanical
• Terminal: Screw Terminal
• Temperature Rating: 194°F (90°C)
• Maximum Voltage: 600 Volts
• Contact Material: Aluminum
• Material Type: Aluminum
• Certifications: CSA, UL Listed
• Unit Count: 2
• Number of Ports: 2
• Mounting Type: Through Hole
• Wire Range: 1/0STR. - 14SOL.
• Contact Coating: Electro-Tin-Plated
• Stud Size: 0.28 in
• Electrical Supplies Type: Aluminum Mechanical Lugs
