Morris Products 90728 750 aluminum mechanical lug 800MCM-300MCM

Product Description

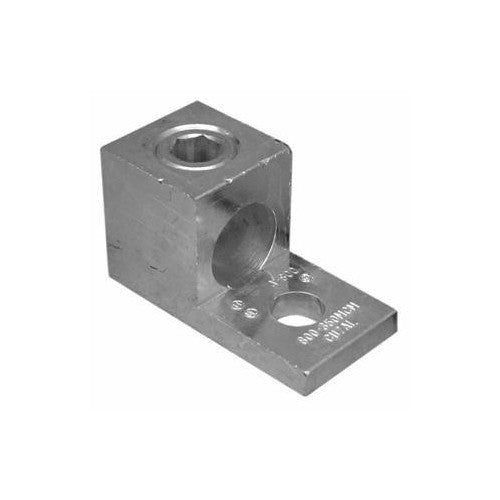

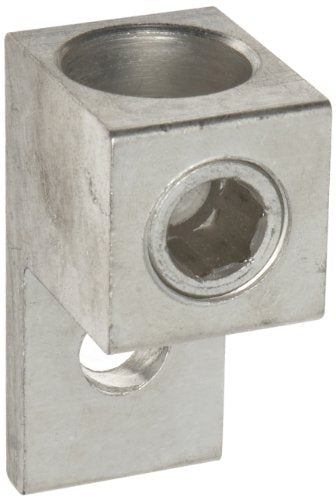

The Morris Products 90728 is an aluminum mechanical lug designed for one conductor with a one-hole mount. Constructed from high-strength 6061-T6 aluminum alloy, it ensures maximum strength and conductivity. This lug is AL9CU dual-rated for both copper and aluminum conductors, accommodating 800MCM-300MCM wire sizes. It features electro-tin plating for low contact resistance and corrosion protection, rated for 600V and 194°F (90°C) operation.

• Manufactured from high strength 6061-T6 aluminum alloy for maximum strength and conductivity.
• AL9CU dual-rated for both copper and aluminum conductors.
• Electro-tin plated for low contact resistance and corrosion protection.

Product Highlights

This reusable aluminum mechanical lug is UL486B/CSA Listed, designed for single conductor applications with a one-hole mount.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90728

Technical Specifications

• Material: High Strength 6061-T6 Aluminum Alloy
• Conductor Rating: AL9CU Dual Rated for both Copper and Aluminum Conductors
• Plating: Electro-Tin Plated
• Voltage Rating: 600V
• Temperature Rating: 194°F (90°C)
• Certifications: UL486B/CSA Listed
• Conductor Size Range: 800MCM-300MCM
• Mount Type: One Hole Mount
• UPC: 601986907286
