Morris Products 90726 mechanical lug 600V one conductor one hole mount 600 AWG 600mcm - 2SOL. wire range

Product Description

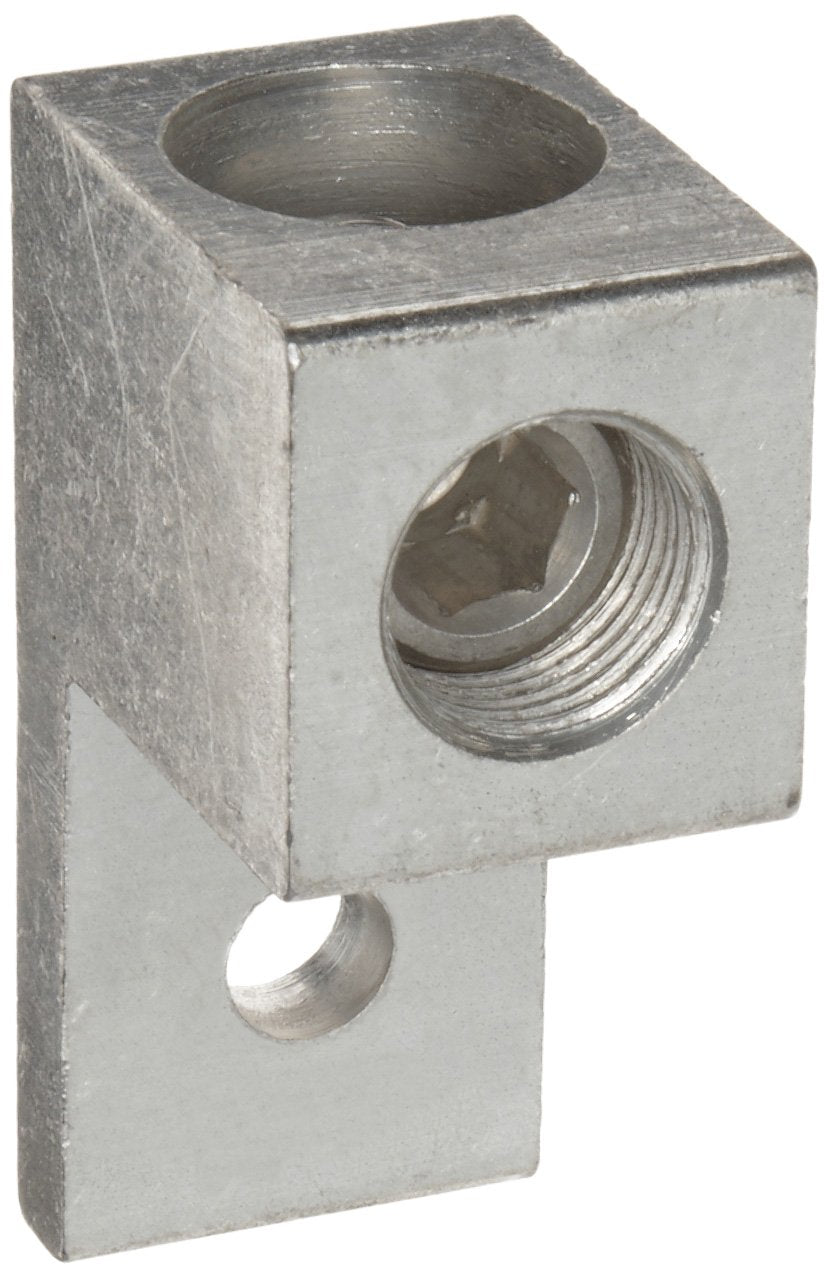

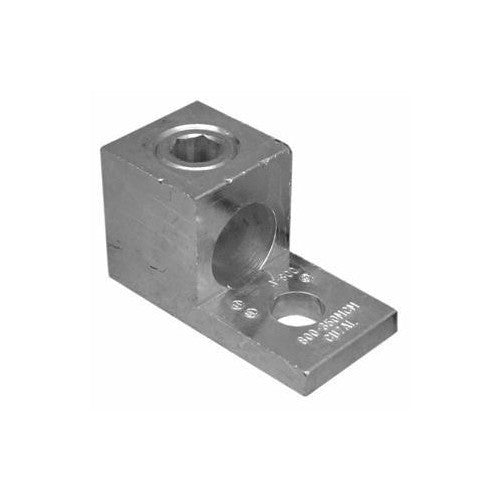

The Morris Products 90726 Mechanical Lug is an aluminum terminal designed for a single conductor with a one-hole mount. Rated for 600V and 194°F (90°C), it accommodates a wire range of 600 AWG, 600mcm - 2SOL. This lug is UL486B/CSA Listed and electro-tin plated for enhanced conductivity and corrosion resistance, making it suitable for various electrical connections.

• Aluminum Mechanical Lugs One Conductor - One Hole Mount - Dual-Rated and Reusable One Hole Aluminum Conductor Lug
• One Hole Aluminum Mechanical Lug is manufactured from High Strength 6061-T6 Aluminum Alloy to insure both maximum strength and conductivity
• AL9CU Dual Rated for both Copper and Aluminum Conductors

Product Highlights

Dual-rated for copper and aluminum conductors, reusable design, and easy assembly with common tools.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90726

Technical Specifications

• Product Type: ELECTRONIC_COMPONENT_TERMINAL
• Wire Range: 600 AWG, 600mcm - 2SOL.
• Conductor: One
• Mount Type: One Hole
• Material: High Strength 6061-T6 Aluminum Alloy
• Voltage Rating: 600V
• Temperature Rating: 194°F (90°C)
• Certifications: UL486B/CSA Listed
• Dual Rated Compatibility: AL9CU for both Copper and Aluminum Conductors
• Plating: Electro-Tin Plated
• Stud Size: 3/8 in
