Morris Products 90722 mechanical lug, one conductor, one hole mount, 350 AWG, 350mcm - 6SOL. wire range

Product Description

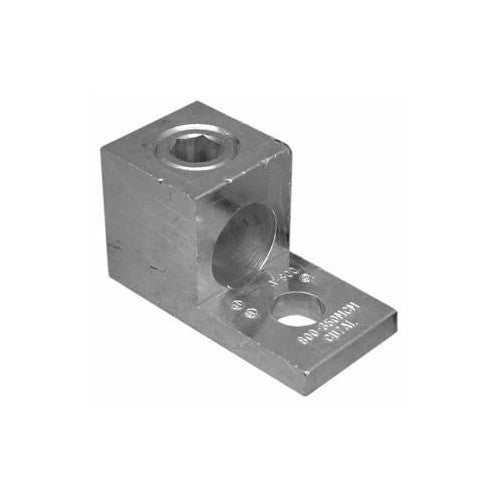

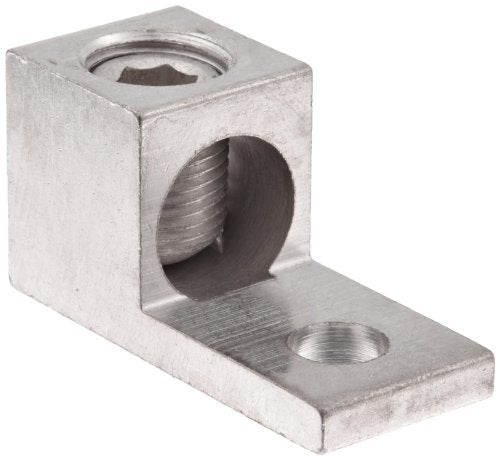

The Morris Products 90722 Mechanical Lug is a one-conductor, one-hole mount lug designed for electrical connections. Manufactured from high-strength 6061-T6 aluminum alloy, it ensures maximum strength and conductivity. This lug is AL9CU dual-rated for both copper and aluminum conductors, and electro-tin plated for low contact resistance and corrosion protection. It accommodates a wire range of 350 AWG, 350mcm - 6SOL. and is rated for 600V and 194°F (90°C).

• Manufactured from High Strength 6061-T6 Aluminum Alloy for maximum strength and conductivity.
• AL9CU Dual Rated for both Copper and Aluminum Conductors, and electro-tin plated for corrosion protection.
• Rated 600V and 194°F (90°C), UL486B/CSA Listed, accommodating 350 AWG, 350mcm - 6SOL. wire.

Product Highlights

Durable, dual-rated aluminum mechanical lug with electro-tin plating, suitable for copper and aluminum conductors, featuring a one-hole mount design.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90722

Technical Specifications

• Product Type: ELECTRONIC_COMPONENT_TERMINAL
• Conductor Count: One
• Mounting Type: One Hole
• Wire Range: 350 AWG, 350mcm - 6SOL.
• Material: High Strength 6061-T6 Aluminum Alloy
• Conductor Rating: AL9CU Dual Rated for both Copper and Aluminum Conductors
• Plating: Electro-Tin Plated
• Installation Method: Screwdriver or allen wrench
• Reusable: Yes
• Voltage Rating: 600V
• Temperature Rating: 194°F (90°C)
• Certifications: UL486B/CSA Listed
• Stud Size: 3/8 in
