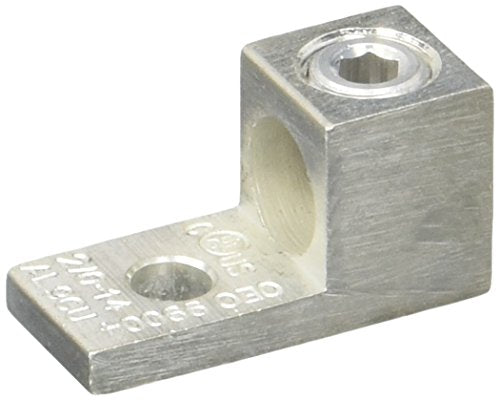

Morris Products 90718 2/0St-14Sol 1 Hole Aluminum Mechanical Lug

Product Description

Morris Products 90718 is a dual-rated, reusable one-hole aluminum conductor lug designed for connecting 2/0 stranded to 14 solid gauge wires. Manufactured from high-strength 6061-T6 aluminum alloy, it ensures maximum strength and conductivity. This mechanical lug is electro-tin plated for low contact resistance and corrosion protection, suitable for both copper and aluminum conductors. It is rated for 600V and 194°F (90°C), meeting UL486B/CSA standards.

• Dual-rated for copper and aluminum conductors
• Manufactured from high-strength 6061-T6 aluminum alloy
• Electro-tin plated for low contact resistance and corrosion protection

Product Highlights

This mechanical lug offers secure, corrosion-resistant connections for diverse wire types, featuring a durable aluminum construction and easy installation.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90718

Technical Specifications

• Conductor Size: 2/0 stranded - 14 Solid
• Hole Count: 1
• Material: High Strength 6061-T6 Aluminum Alloy
• Type: Conductor Lug
• Rating: Dual-rated
• Voltage Rating: 600V
• Temperature Rating: 194°F (90°C)
• Certifications: UL486B/CSA Listed
• Plating: Electro-Tin Plated
• Conductor Compatibility: Copper and Aluminum Conductors
• Mounting Type: One Hole Mount
• Screw Type: Slotted screws
• Reusability: Reusable
• Connector Type: Screw Terminal
• Stud Size: 1/4 in
