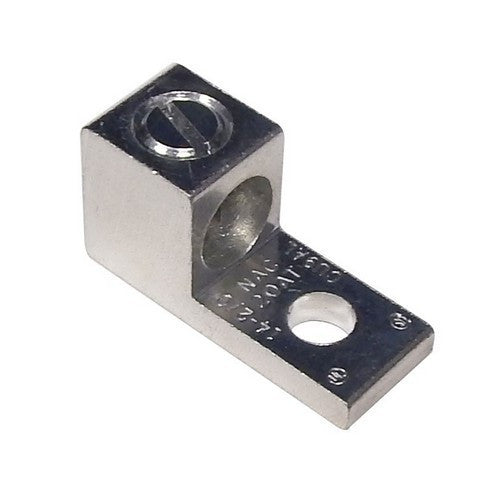

Morris Products 90716 Aluminum Mechanical Lug One Conductor 1/0-#14 AWG One Hole Mount 600V

Product Description

The MORRIS PRODUCTS 90716 is a dual-rated, reusable one-hole aluminum conductor lug. Manufactured from high-strength 6061-T6 aluminum alloy, it ensures maximum strength and conductivity. This lug is AL9CU dual-rated for both copper and aluminum conductors, and electro-tin plated for low contact resistance and corrosion protection. It is rated for 600V and 194°F (90°C) operation, suitable for 1/0 AWG stranded to 14 AWG solid wire.

• Dual-rated for both copper and aluminum conductors.
• Manufactured from high-strength 6061-T6 aluminum alloy.
• Electro-tin plated for low contact resistance and corrosion protection.

Product Highlights

A dual-rated, reusable one-hole aluminum mechanical lug for 1/0 AWG stranded to 14 AWG solid conductors.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90716

Technical Specifications

• SKU: 90716
• MPN: 90716
• Brand: Morris Products
• UPC: 601986907163
• Color: Silver
• Connector Type: Screw Terminal
• Contact Material: Aluminum Alloy
• Insulation Material: Nylon
• Terminal Type: Screw Terminal
• Temperature Rating: 194°F (90°C)
• Voltage Rating: 600V
• Material: High Strength 6061-T6 Aluminum Alloy
• Certifications: UL486B/CSA Listed
• Wire Size: 1/0 AWG Stranded, 14 AWG Solid
• Contact Coating: Electro-Tin Plated
• Stud Size: 1/4 in
• Conductor Rating: AL9CU Dual Rated for both Copper and Aluminum Conductors
• Mount Type: One Hole Mount
• Screw Type: Slotted
• Reusable: Yes
• Type: Mechanical Lug
