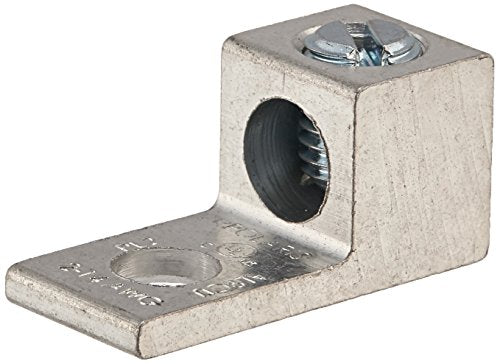

Morris Products 90714 One Conductor One Hole Mount Aluminum Mechanical Lug 600V 2 AWG Set of 10

Product Description

The Morris Products 90714 is an aluminum mechanical lug designed for electrical connections. Manufactured from high strength 6061-T6 aluminum alloy, it ensures maximum strength and conductivity. This lug is dual-rated for both copper and aluminum conductors and is electro-tin plated for low contact resistance and corrosion protection. It features slotted screws for secure installation and is rated for 600V and 194°F (90°C). It is UL486B and CSA listed.

• Manufactured from high strength 6061-T6 aluminum alloy to ensure maximum strength and conductivity.
• Dual-rated for both copper and aluminum conductors.
• Electro-tin plated to provide low contact resistance and protection against corrosion.

Product Highlights

UL486B/CSA listed, rated 600V and 194°F (90°C).

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90714

Technical Specifications

• Voltage Rating: 600V
• Temperature Rating: 194°F (90°C)
• Material: 6061-T6 aluminum alloy
• Plating: Electro-tin plated
• Conductor Compatibility: Copper and aluminum
• Screw Type: Slotted
• Certifications: UL486B / CSA listed
• Product Type: Electronic Component Terminal
• Manufacturer: Morris Products
• Brand: Morris Products
• Package Quantity: 10
• Wire Range: 2-14 AWG
• Mount Type: One Hole Mount
• Conductor Type: One Conductor
• Reusability: Reusable
