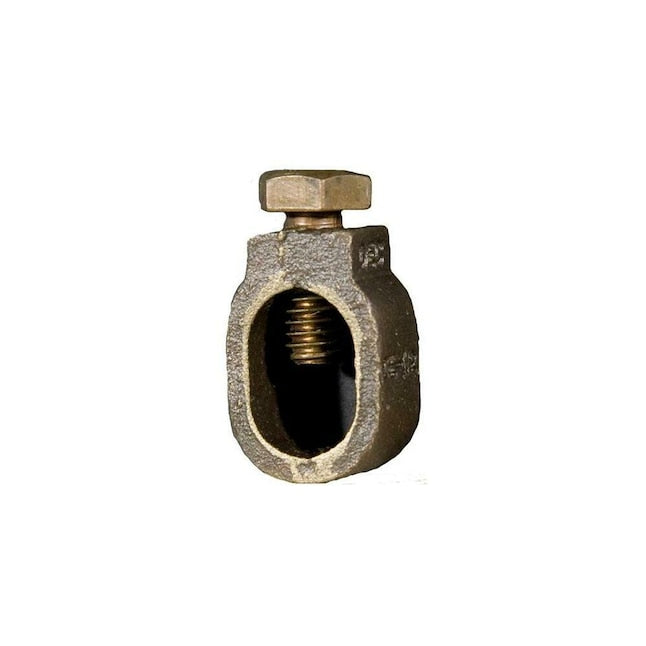

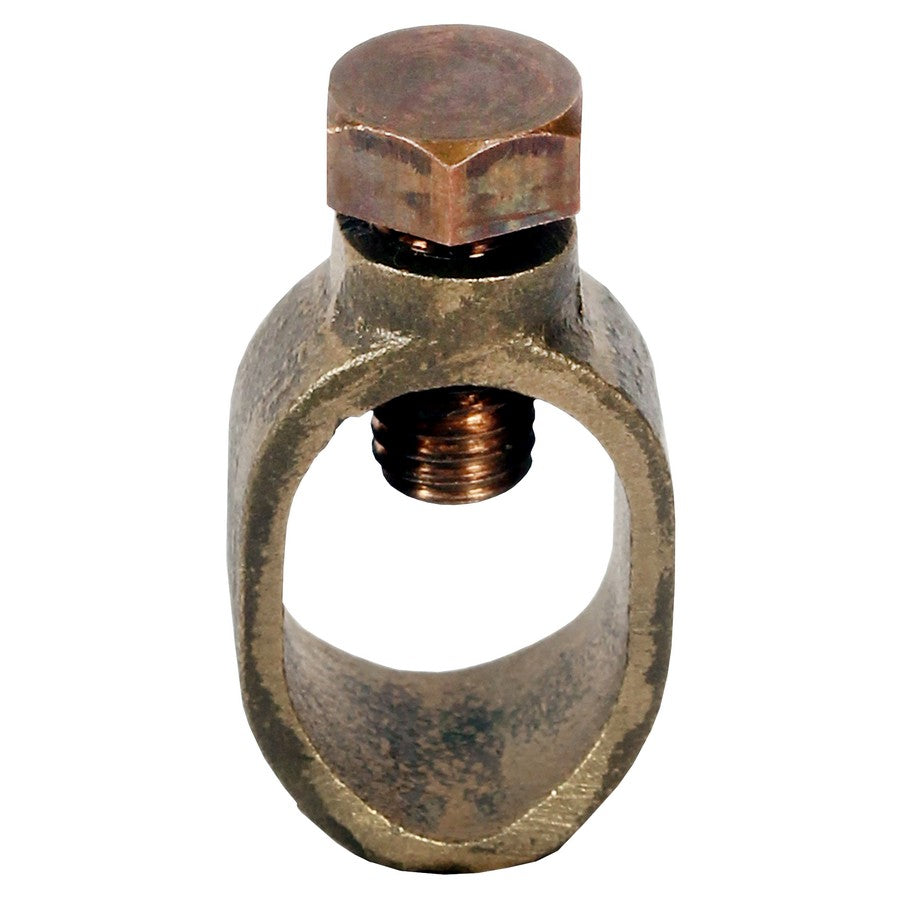

Morris Products 90638 3/4 inch Ground Rod Clamp

Product Description

The Morris Products 90638 Ground Rod Clamp provides a secure, low-resistance connection for grounding conductors to 3/4 inch ground rods. Constructed from high-strength, high-conductivity cast copper alloy, this clamp is designed for direct burial applications in soil and concrete environments. It ensures excellent electrical performance and strong resistance to corrosion, making it suitable for residential, commercial, and industrial grounding systems. The silicon bronze hex head bolt maintains proper contact and alignment between the wire and rod.

• Designed for 3/4 inch ground rods and #1 – #10 AWG conductors
• Constructed from high-strength, high-conductivity cast copper alloy
• Direct burial rated for use in soil and concrete environments

Product Highlights

Dependable solution for professional grounding systems, delivering strength, conductivity, and long-term durability.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90638

Technical Specifications

• Rod Diameter: 3/4 inch
• Application: Direct Burial Ground Rod Clamp
• Electrical Supplies Type: Grounding, Ground Rod Clamps
• Approval: UL467 Direct Burial approved for Direct Burial in Soil or Concrete, cULus Listed
• Wire Range: #1 – #10 AWG
• Screw Thread: 3/8"-16
• Material: High strength copper alloy (80% or more Copper)
• Bolt Material: Silicon Bronze or Stainless Steel
• Marking: Direct Burial marked on ground rod clamps
