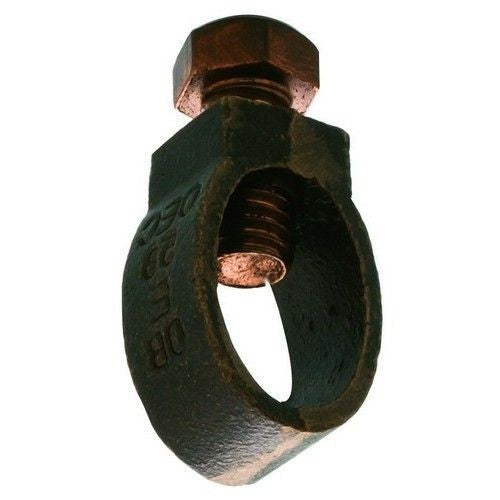

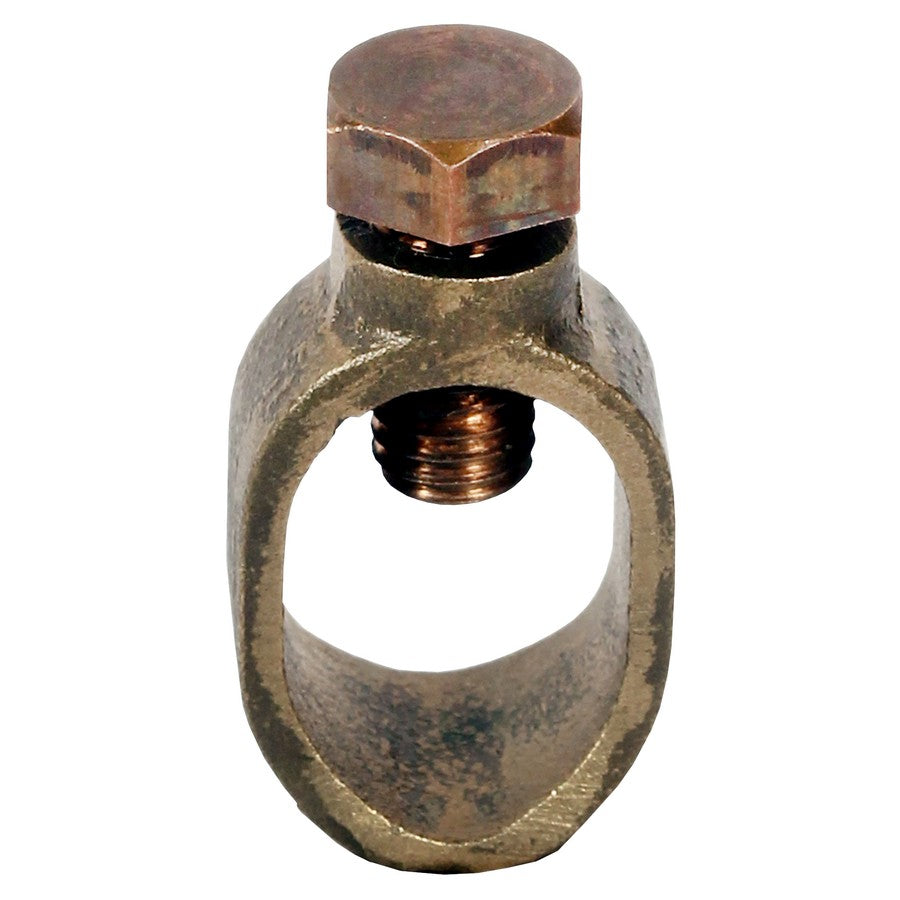

Morris Products 90636 ground rod clamp 5/8 in 10 to 1/0 awg

Product Description

The MORRIS PRODUCTS 90636 Ground Rod Clamp provides a secure, low-resistance connection for grounding conductors to 5/8 inch ground rods. Constructed from high-strength cast copper alloy, it accommodates 10 to 1/0 AWG wire and is UL 467 listed for direct burial applications in soil and concrete. This heavy-duty clamp ensures reliable grounding performance, maintaining proper contact between the ground wire and rod.

• Securely connects grounding conductors to 5/8 inch ground rods.
• Accommodates 10 to 1/0 AWG wire for versatile applications.
• Constructed from high-strength cast copper alloy for durability and conductivity.

Product Highlights

Direct burial rated copper alloy clamp for secure grounding connections.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90636

Technical Specifications

• Rod Diameter: 5/8 in
• Wire Range: 10 to 1/0 AWG
• Material: Cast Copper Alloy
• Type: Direct Burial Heavy Duty
• UL Listed: Yes
• Screw Thread: 3/8-16
• Standard & Approvals: cULus Listed, UL 467
• Finish: Silicon Bronze
