Morris Products 90617 250s aluminum splice 600v 85221

Product Description

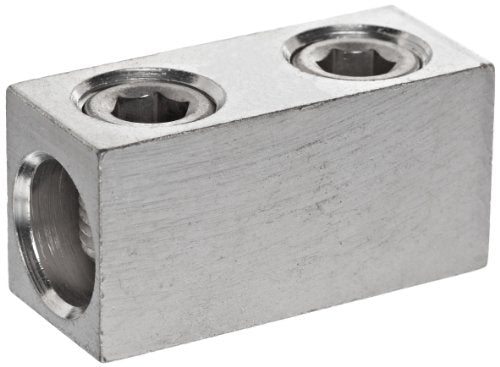

The Morris Products 90617 is an aluminum splice designed for electrical connections. This mechanical cable splice is Al9Cu dual-rated for both copper and aluminum conductors, ensuring versatility. Manufactured from high-strength 6061-T6 aluminum alloy, it provides maximum strength and conductivity. It is electro tin plated for low contact resistance and corrosion protection, rated for 600 volts, and suitable for cables up to 194 degrees Fahrenheit. It accommodates conductor sizes from 6 AWG to 250 KCMIL.

• Al9Cu Dual Rated for Both Copper and Aluminum Conductor
• Manufactured from High Strength 6061-T6 Aluminum Alloy to Ensure Both Maximum Strength and Conductivity
• Electro Tin Plated to Provide Low Contact Resistance and Protection Against Corrosion

Product Highlights

Rated 600 Volt and suitable for cables up to 194 degrees Fahrenheit.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90617

Technical Specifications

• Brand: Morris Products
• MPN: 90617
• Type: 250S
• Product Type: Mechanical Cable Splice
• Body Material: Electro Tin Plated 6061-T6 Aluminum Alloy
• Cable Temperature Rating: 194 Deg F
• Voltage Rating: 600 V
• Minimum Conductor Size: 6 AWG
• Maximum Conductor Size: 250 KCMIL
• Conductor Material: Copper/Aluminum
• Number of Screws: 2
• Approval: UL 486B, CSA
• Supplies Depot Part Number: 85221
• UPC: 601986906173
