Morris Products 90614 2 Screw Splice 600V 1/0 2pc

Product Description

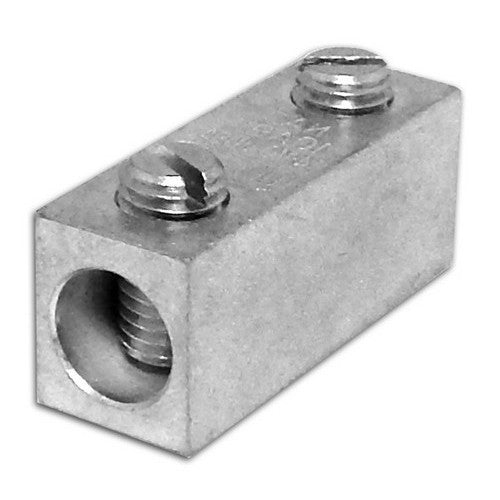

The Morris Products 90614 is a 2 screw aluminum splice and reducer, designed for copper and aluminum cables with a wire range of 1/0 to #14 AWG. It is AL9CU dual rated for conductor compatibility. Manufactured from high-strength 6061-T6 Aluminum Alloy, it ensures maximum strength and conductivity. This splice is electro tin plated for low contact resistance and corrosion protection, rated for 600 Volts and cULus Listed, suitable for cables up to 194°F (90°C).

• AL9CU Dual Rated for both Copper and Aluminum Conductors
• Manufactured from High Strength 6061-T6 Aluminum Alloy to ensure both Maximum Strength and Conductivity
• Electro Tin Plated to provide low contact resistance and protection against corrosion

Product Highlights

AL9CU dual rated for copper and aluminum, 600V, cULus Listed, and rated for 90°C cables.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90614
• Country of Origin: China

Technical Specifications

• Brand: Morris Products
• MPN: 90614
• SKU: 90614
• Style: Aluminum Splices/Reducers
• Material: High Conductivity Aluminum Alloy
• Connector Type: Aluminum Splices
• Electrical Supplies Type: Mechanical Connectors
• Temperature Rating: 194°F (90°C)
• Wire Range: 1/0 - 14 AWG
• Certifications: cULus Listed, UL486B/CSA Listed
• Catalog Number: 90614
• Country of Origin: China
• Voltage Rating: 600V
• Plating: Electro-Tin-Plated
• Type: Splice Reducer
• Material Rating: AL9CU
• Rating Type: Dual Rated
