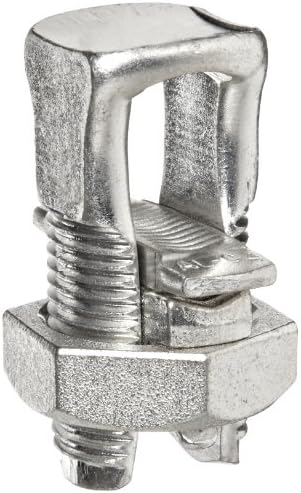

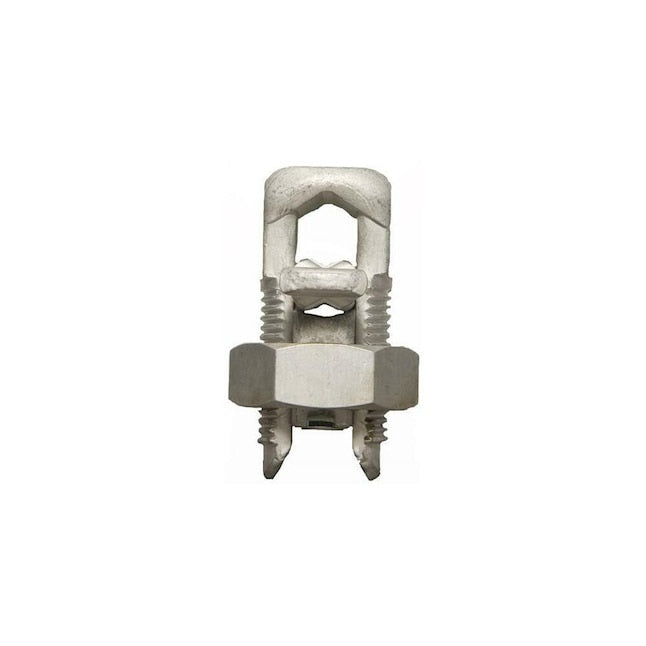

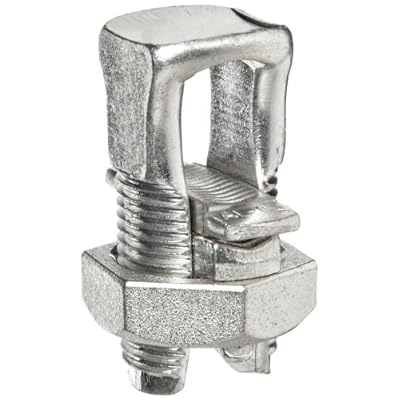

Morris Products 90418 Cu/AL Split Bolt 600 V 6 Sol.-1/0 St

Product Description

The Morris Products 90418 is a dual-rated split bolt connector designed for secure electrical connections between copper and aluminum conductors. This connector is UL listed for all combinations of Aluminum, Aluminum to Copper, and Copper to Copper stranded wires. Manufactured from copper alloy, it features uniform bright electro-tin plating that resists corrosion and reduces contact resistance, ensuring maximum conductivity. Rated for 600 Volts, it is suitable for various demanding applications.

• Dual-rated for copper and aluminum conductors, accommodating various wire combinations.
• Constructed from copper alloy with electro-tin plating for enhanced corrosion resistance and conductivity.
• Rated for 600 Volts and UL486B/CSA Listed, ensuring safety and compliance for electrical installations.

Product Highlights

This split bolt connector provides reliable, low-resistance connections for both copper and aluminum conductors, featuring a spacer and corrosion-resistant plating.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90418
• Country of Origin: USA

Technical Specifications

• MPN: 90418
• Voltage Rating: 600 V
• Wire Size: 1/0 AWG
• Material: Copper Alloy, Electro-Tin-Plated
• Temperature Rating: 75 deg C
• Connector Type: Split Bolt
• Terminal Type: Screw Terminal
• Contact Material: Copper
• Conductor Material Compatibility: Aluminum, Copper
• Max Run To Max Tap: 1/0 - 1/0
• Min Run To Min Tap: 2 - 14
• Max Run To Min Tap: 1/0 - 14
• Min Equal Tap and Run: 4 - 4
• Torque Rating: 385 in-lb
• Certifications: UL486B, CSA
