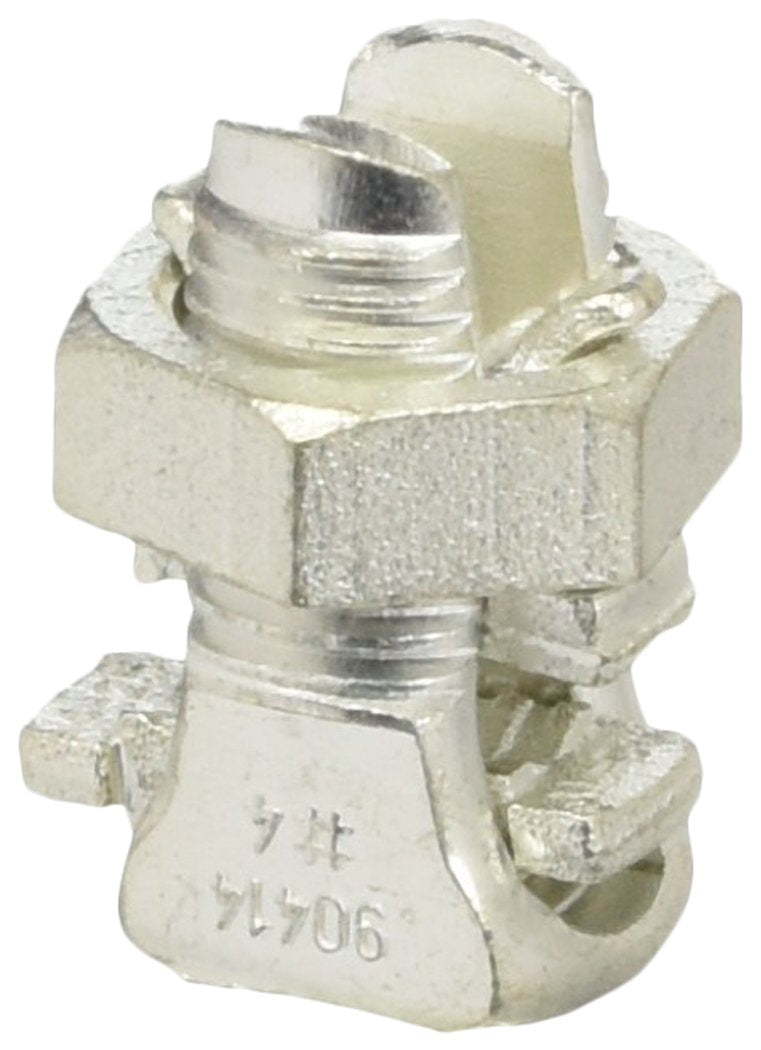

Morris Products 90414 Bolt Connector with Spacer Dual Rated for Copper and Aluminum Conductors 600 Volts Number-4 Wire Range 5-Pack

Product Description

The Morris Products 90414 Bolt Connector is a dual-rated split bolt connector designed for joining copper and aluminum conductors. It features free-turning threads and easy-to-grip wrench flats for secure installation. This connector is highly resistant to season cracking and corrosion, ensuring durability. Rated for 600 Volts, it is UL486B/CSA Listed and suitable for various electrical applications. An anti-oxidant is recommended for all aluminum terminations to maintain optimal performance.

• AL9CU Dual rated split bolt connector is UL listed for all combinations of Aluminum, Aluminum to Copper, and Copper to Copper stranded wires
• Uniform bright electro-tin plating resists corrosion, reduces contact resistance and gives you maximum conductivity
• Spacer separates dissimilar conductors and provides long contact length that prevents high pressure point contacts between run and tap connectors

Product Highlights

Dual-rated for copper and aluminum conductors, this 600V split bolt connector offers corrosion resistance and maximum conductivity.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90414

Technical Specifications

• Brand: Morris Products
• MPN: 90414
• Manufacturer: Morris Products
• Size: #4
• Package Quantity: 5
• Wire Range: Number-4
• Conductor Type: Copper and Aluminum
• Voltage Rating: 600 Volts
• Certifications: UL486B/CSA Listed, UL467 Listed, Suitable for Direct Burial and Grounding/Bonding
• Material: Copper alloy
• Wire Gauge: #4 AWG
• Included Components: #4 Cu/Al Split Bolt w/Spacer
• Connector Type: Split Bolt
• Max Run To Max Tap: 4-4
• Min Run To Min Tap: 6-14
• Max Run To Min Tap: 4-14
• Min Equal Tap and Run: 8-8
• Temperature Rating: 75 degrees C
