Morris Products 90412 bolt connector with spacer dual rated for copper and aluminum conductors 600 volts #6 awg

Product Description

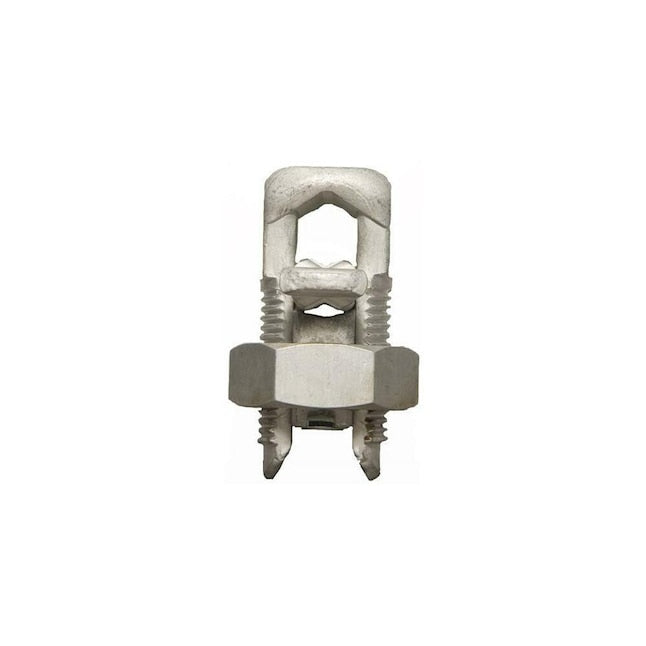

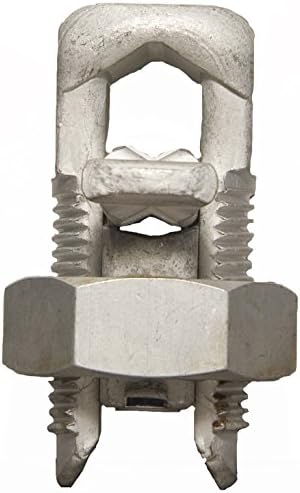

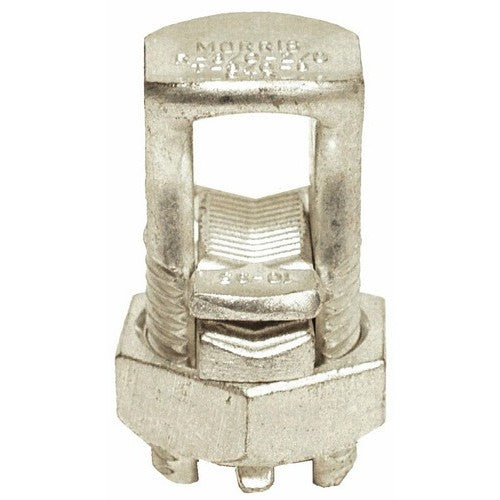

The Morris Products 90412 is a dual-rated split bolt connector designed for copper and aluminum conductors. This connector is UL listed for various combinations of aluminum, aluminum to copper, and copper to copper stranded wires. Manufactured from copper alloy, it features uniform bright electro-tin plating to resist corrosion and maximize conductivity. A built-in spacer separates dissimilar conductors, preventing high-pressure point contacts. Rated for 600 Volts and suitable for #6 AWG wire, it ensures secure electrical connections.

• Dual rated for copper and aluminum conductors, UL listed for various wire combinations.
• Manufactured from copper alloy with uniform bright electro-tin plating for corrosion resistance and maximum conductivity.
• Features a spacer to separate dissimilar conductors and prevent high-pressure point contacts.

Product Highlights

Dual-rated split bolt connector for copper and aluminum, featuring corrosion-resistant electro-tin plating and a conductor-separating spacer.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90412

Technical Specifications

• Brand: Morris
• Model: 90412
• Part Number: 90412
• Manufacturer: Morris Products
• Terminal Type: Screw Terminal
• Temperature Rating: 221°C
• Maximum Voltage: 600 Volts
• Contact Material: Copper, Aluminum
• Material: Copper Alloy
• Certifications: CSA, UL
• Wire Gauge: 6 AWG
• Finish: Electro-Tin-Plated
• Max Run To Max Tap: 4-4
• Min Run To Min Tap: 8-14
• Max Run To Min Tap: 4-14
• Min Equal Tap and Run: 8-8
