Morris Products 90328 250 Copper Split Bolt

Product Description

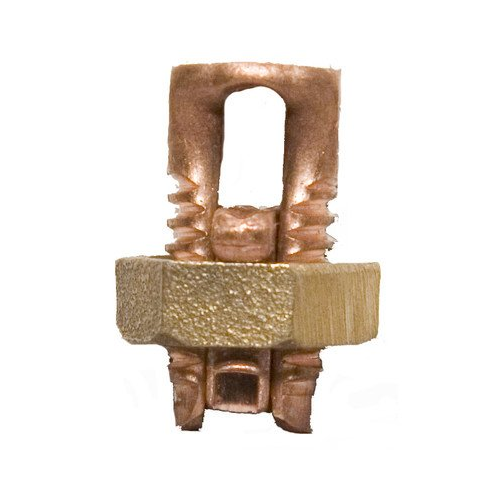

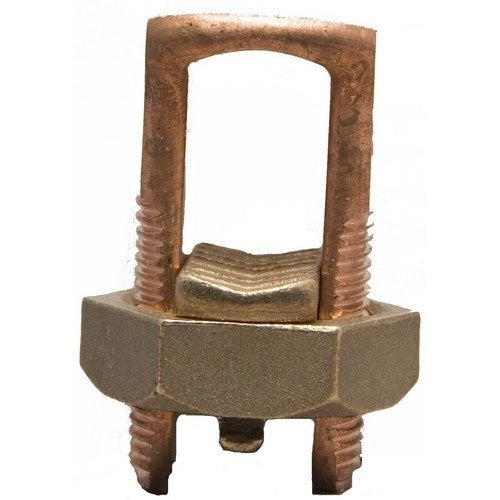

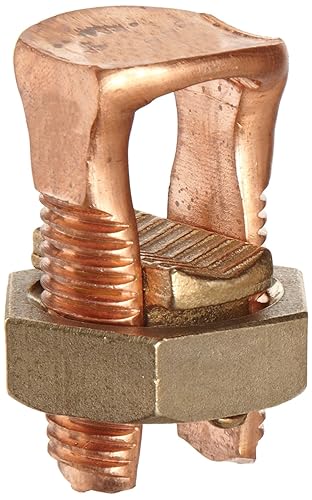

The Morris Products 90328 is a split bolt connector designed for use with copper conductors. It accommodates wire gauges from 4/0-250 AWG, supporting various run and tap configurations including 250-250 Max Run to Max Tap and 4/0-8 Min Run to Min Tap. This connector is rated for 500 in-lb torque, ensuring secure electrical connections for copper wiring applications.

• Designed for copper conductors
• Compatible with 4/0-250 AWG wire gauges
• Rated for 500 in-lb torque

Product Highlights

Secure split bolt connector for copper wire applications, offering broad gauge compatibility and high torque rating.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90328

Technical Specifications

• Connector Type: Split Bolt
• Material: Copper
• Insulation Material Type: Not Insulated
• Model Number: 90328
• Color: Bronze
• Electrical Supplies Type: Mechanical Connectors
• Maximum Voltage: 600 Volts
• Wire Gauge: 4/0-250 AWG
• Torque Rating: 500 in-lb
• Certifications: UL Listed, UL486B/CSA, UL467
• Direct Burial: Yes
• Grounding/Bonding: Yes
